Please send RFQ , we will respond immediately.

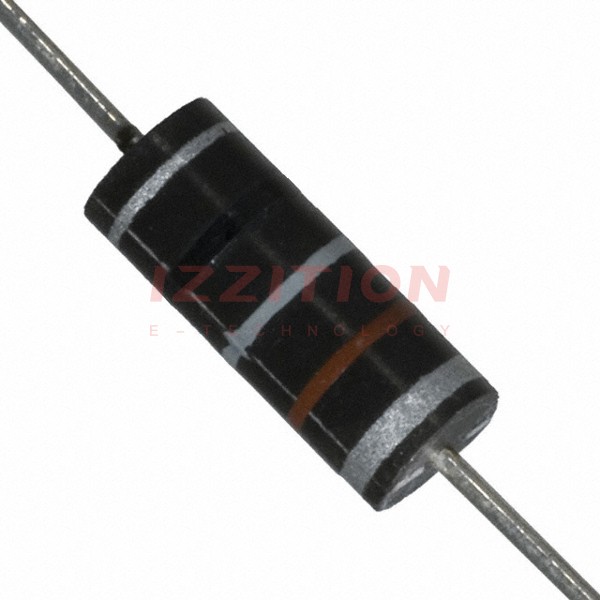

| Part Number | 9250A-183-RC | 9250A-184-RC | 9250A-185-RC | 9250A-103-RC | 9250A-123-RC | 9250A-153-RC | 9250A-181-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 18 µH | 180 µH | 1.8 mH | 10 µH | 12 µH | 15 µH | 180 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 300 mA | 135 mA | 50 mA | 220 mA | 200 mA | 315 mA | 1.3 A |
| Current - Saturation (Isat) | 235mA | 85mA | 30mA | 220mA | 200mA | 250mA | 1.3A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 890mOhm Max | 4.4Ohm Max | 29.9Ohm Max | 1.62Ohm Max | 2Ohm Max | 800mOhm Max | 47mOhm Max |
| Q @ Freq | 45 @ 2.5MHz | 55 @ 790kHz | 45 @ 250kHz | 50 @ 7.9MHz | 55 @ 2.5MHz | 45 @ 2.5MHz | 50 @ 25MHz |
| Frequency - Self Resonant | 45MHz | 8MHz | 1MHz | 46MHz | 44MHz | 49MHz | 250MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.5 MHz | 790 kHz | 250 kHz | 7.9 MHz | 2.5 MHz | 2.5 MHz | 25 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
