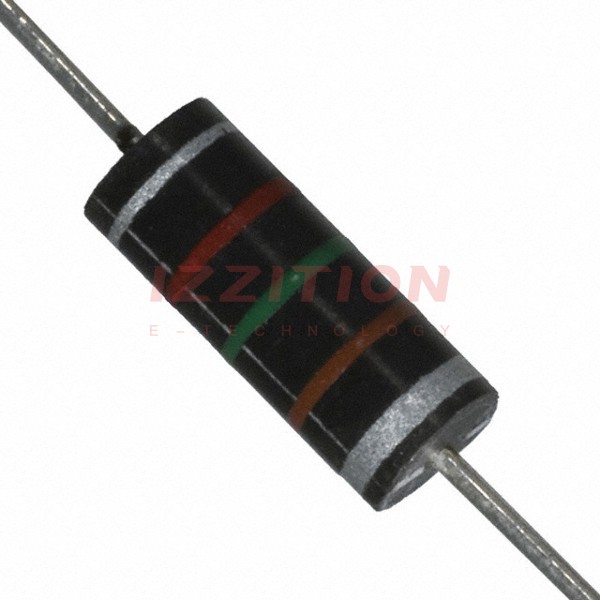

| Part Number | 9250A-155-RC | 9250A-185-RC | 9250A-105-RC | 9250A-125-RC | 9250A-151-RC | 9250A-152-RC | 9250A-153-RC | 9250A-154-RC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 mH | 1.8 mH | 1 mH | 1.2 mH | 150 nH | 1.5 µH | 15 µH | 150 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 55 mA | 50 mA | 70 mA | 60 mA | 1.47 A | 815 mA | 315 mA | 140 mA |
| Current - Saturation (Isat) | 33mA | 30mA | 40mA | 35mA | 1.47A | 815mA | 250mA | 90mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 26.5Ohm Max | 29.9Ohm Max | 17.5Ohm Max | 22.1Ohm Max | 37mOhm Max | 120mOhm Max | 800mOhm Max | 4.1Ohm Max |
| Q @ Freq | 45 @ 250kHz | 45 @ 250kHz | 60 @ 790kHz | 45 @ 250kHz | 51 @ 25MHz | 44 @ 7.9MHz | 45 @ 2.5MHz | 55 @ 790kHz |
| Frequency - Self Resonant | 1.2MHz | 1MHz | 3.8MHz | 1.5MHz | 250MHz | 115MHz | 49MHz | 8.5MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 kHz | 250 kHz | 790 kHz | 250 kHz | 25 MHz | 7.9 MHz | 2.5 MHz | 790 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
