Please send RFQ , we will respond immediately.

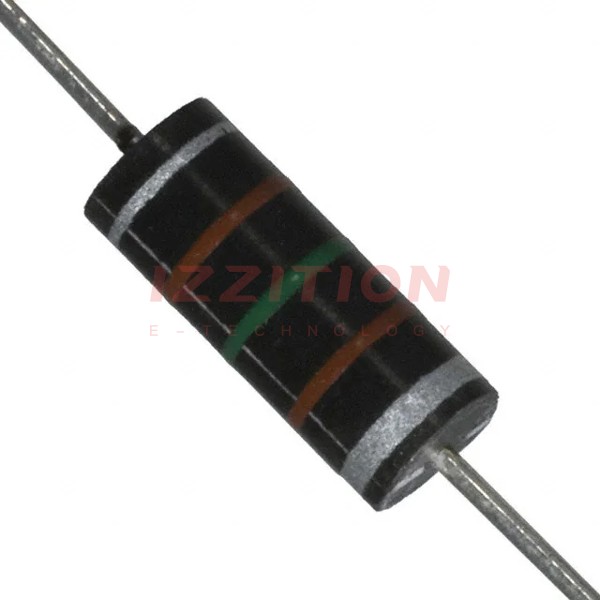

| Part Number | 9250A-154-RC | 9250A-184-RC | 9250A-155-RC | 9250A-104-RC | 9250A-151-RC | 9250A-152-RC | 9250A-153-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 150 µH | 180 µH | 1.5 mH | 100 µH | 150 nH | 1.5 µH | 15 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 140 mA | 135 mA | 55 mA | 160 mA | 1.47 A | 815 mA | 315 mA |
| Current - Saturation (Isat) | 90mA | 85mA | 33mA | 120mA | 1.47A | 815mA | 250mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 4.1Ohm Max | 4.4Ohm Max | 26.5Ohm Max | 3.12Ohm Max | 37mOhm Max | 120mOhm Max | 800mOhm Max |
| Q @ Freq | 55 @ 790kHz | 55 @ 790kHz | 45 @ 250kHz | 50 @ 2.5MHz | 51 @ 25MHz | 44 @ 7.9MHz | 45 @ 2.5MHz |
| Frequency - Self Resonant | 8.5MHz | 8MHz | 1.2MHz | 10MHz | 250MHz | 115MHz | 49MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 790 kHz | 790 kHz | 250 kHz | 2.5 MHz | 25 MHz | 7.9 MHz | 2.5 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
