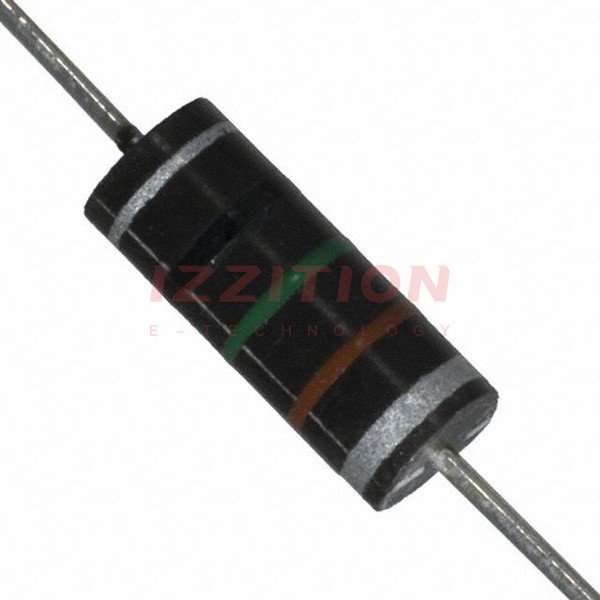

| Part Number | 9250A-153-RC | 9250A-155-RC | 9250A-154-RC | 9250A-183-RC | 9250A-103-RC | 9250A-123-RC | 9250A-151-RC | 9250A-152-RC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 15 µH | 1.5 mH | 150 µH | 18 µH | 10 µH | 12 µH | 150 nH | 1.5 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 315 mA | 55 mA | 140 mA | 300 mA | 220 mA | 200 mA | 1.47 A | 815 mA |
| Current - Saturation (Isat) | 250mA | 33mA | 90mA | 235mA | 220mA | 200mA | 1.47A | 815mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 800mOhm Max | 26.5Ohm Max | 4.1Ohm Max | 890mOhm Max | 1.62Ohm Max | 2Ohm Max | 37mOhm Max | 120mOhm Max |
| Q @ Freq | 45 @ 2.5MHz | 45 @ 250kHz | 55 @ 790kHz | 45 @ 2.5MHz | 50 @ 7.9MHz | 55 @ 2.5MHz | 51 @ 25MHz | 44 @ 7.9MHz |
| Frequency - Self Resonant | 49MHz | 1.2MHz | 8.5MHz | 45MHz | 46MHz | 44MHz | 250MHz | 115MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.5 MHz | 250 kHz | 790 kHz | 2.5 MHz | 7.9 MHz | 2.5 MHz | 25 MHz | 7.9 MHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
