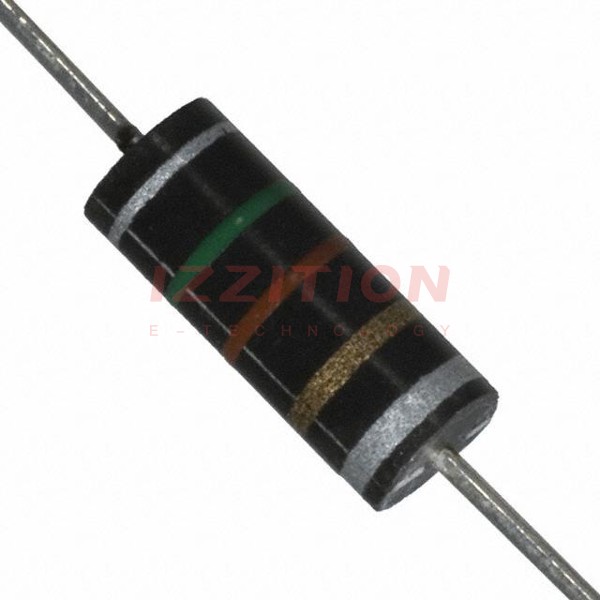

| Part Number | 9250A-151-RC | 9250A-181-RC | 9250A-155-RC | 9250A-153-RC | 9250A-154-RC | 9250A-152-RC | 9250A-101-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 150 nH | 180 nH | 1.5 mH | 15 µH | 150 µH | 1.5 µH | 100 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 1.47 A | 1.3 A | 55 mA | 315 mA | 140 mA | 815 mA | 1.79 A |
| Current - Saturation (Isat) | 1.47A | 1.3A | 33mA | 250mA | 90mA | 815mA | 1.79A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 37mOhm Max | 47mOhm Max | 26.5Ohm Max | 800mOhm Max | 4.1Ohm Max | 120mOhm Max | 25mOhm Max |
| Q @ Freq | 51 @ 25MHz | 50 @ 25MHz | 45 @ 250kHz | 45 @ 2.5MHz | 55 @ 790kHz | 44 @ 7.9MHz | 50 @ 25MHz |
| Frequency - Self Resonant | 250MHz | 250MHz | 1.2MHz | 49MHz | 8.5MHz | 115MHz | 250MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz | 250 kHz | 2.5 MHz | 790 kHz | 7.9 MHz | 25 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
