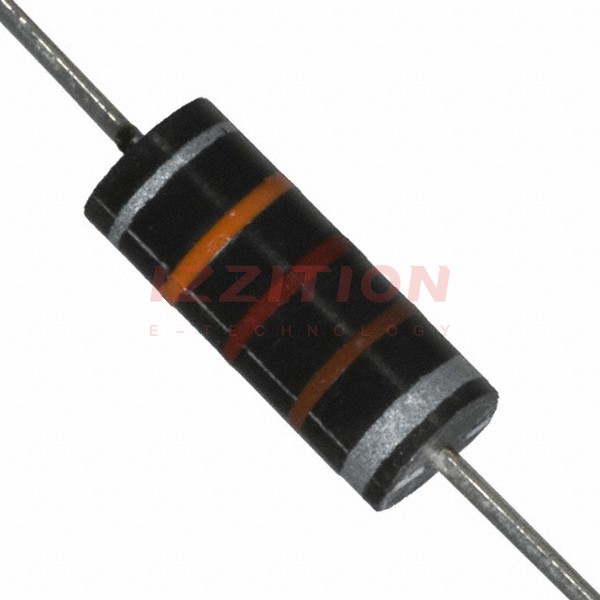

| Part Number | 9250A-126-RC | 9250A-226-RC | 9250A-826-RC | 9250A-106-RC | 9250A-122-RC | 9250A-123-RC | 9250A-125-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 mH | 22 mH | 82 mH | 10 mH | 1.2 µH | 12 µH | 1.2 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 23 mA | 17 mA | 11 mA | 24 mA | 895 mA | 200 mA | 60 mA |
| Current - Saturation (Isat) | 13mA | 9mA | 3.5mA | 14mA | 895mA | 200mA | 35mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 143Ohm Max | 274Ohm Max | 618Ohm Max | 137Ohm Max | 100mOhm Max | 2Ohm Max | 22.1Ohm Max |
| Q @ Freq | 30 @ 79kHz | 27 @ 79kHz | 21 @ 79kHz | 40 @ 250kHz | 44 @ 7.9MHz | 55 @ 2.5MHz | 45 @ 250kHz |
| Frequency - Self Resonant | 330kHz | 250kHz | 120kHz | 470kHz | 130MHz | 44MHz | 1.5MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 79 kHz | 79 kHz | 79 kHz | 250 kHz | 7.9 MHz | 2.5 MHz | 250 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
