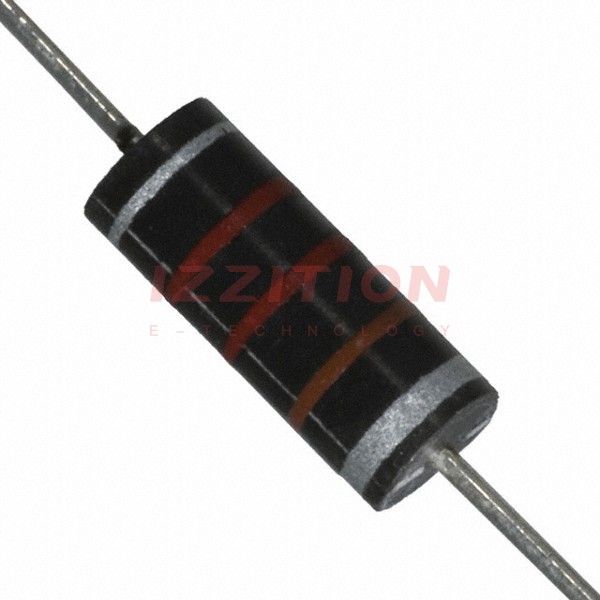

| Part Number | 9250A-125-RC | 9250A-825-RC | 9250A-155-RC | 9250A-225-RC | 9250A-185-RC | 9250A-126-RC | 9250A-105-RC | 9250A-122-RC | 9250A-123-RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.2 mH | 8.2 mH | 1.5 mH | 2.2 mH | 1.8 mH | 12 mH | 1 mH | 1.2 µH | 12 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 60 mA | 26 mA | 55 mA | 50 mA | 50 mA | 23 mA | 70 mA | 895 mA | 200 mA |
| Current - Saturation (Isat) | 35mA | 15mA | 33mA | 27mA | 30mA | 13mA | 40mA | 895mA | 200mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 22.1Ohm Max | 119Ohm Max | 26.5Ohm Max | 33.8Ohm Max | 29.9Ohm Max | 143Ohm Max | 17.5Ohm Max | 100mOhm Max | 2Ohm Max |
| Q @ Freq | 45 @ 250kHz | 40 @ 250kHz | 45 @ 250kHz | 45 @ 250kHz | 45 @ 250kHz | 30 @ 79kHz | 60 @ 790kHz | 44 @ 7.9MHz | 55 @ 2.5MHz |
| Frequency - Self Resonant | 1.5MHz | 540kHz | 1.2MHz | 970kHz | 1MHz | 330kHz | 3.8MHz | 130MHz | 44MHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 250 kHz | 250 kHz | 250 kHz | 250 kHz | 250 kHz | 79 kHz | 790 kHz | 7.9 MHz | 2.5 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
