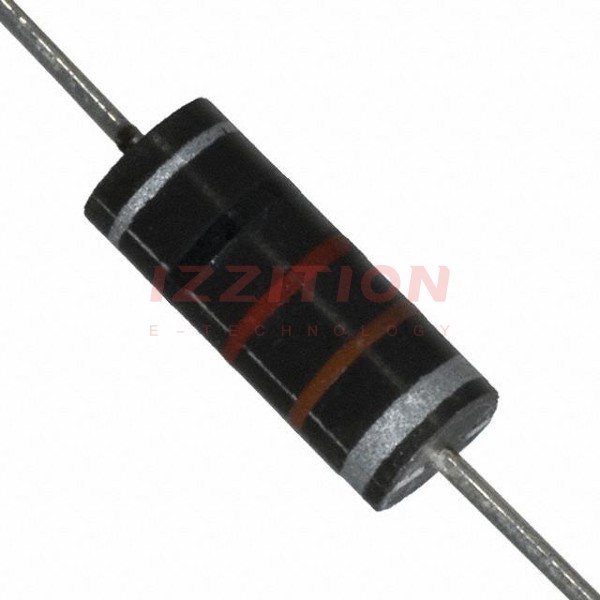

| Part Number | 9250A-123-RC | 9250A-223-RC | 9250A-125-RC | 9250A-153-RC | 9250A-183-RC | 9250A-823-RC | 9250A-126-RC | 9250A-103-RC | 9250A-122-RC |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 22 µH | 1.2 mH | 15 µH | 18 µH | 82 µH | 12 mH | 10 µH | 1.2 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 200 mA | 290 mA | 60 mA | 315 mA | 300 mA | 180 mA | 23 mA | 220 mA | 895 mA |
| Current - Saturation (Isat) | 200mA | 220mA | 35mA | 250mA | 235mA | 140mA | 13mA | 220mA | 895mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2Ohm Max | 960mOhm Max | 22.1Ohm Max | 800mOhm Max | 890mOhm Max | 2.44Ohm Max | 143Ohm Max | 1.62Ohm Max | 100mOhm Max |
| Q @ Freq | 55 @ 2.5MHz | 45 @ 2.5MHz | 45 @ 250kHz | 45 @ 2.5MHz | 45 @ 2.5MHz | 50 @ 2.5MHz | 30 @ 79kHz | 50 @ 7.9MHz | 44 @ 7.9MHz |
| Frequency - Self Resonant | 44MHz | 41MHz | 1.5MHz | 49MHz | 45MHz | 10.5MHz | 330kHz | 46MHz | 130MHz |
| Ratings | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 2.5 MHz | 2.5 MHz | 250 kHz | 2.5 MHz | 2.5 MHz | 2.5 MHz | 79 kHz | 7.9 MHz | 7.9 MHz |
| Features | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - |
