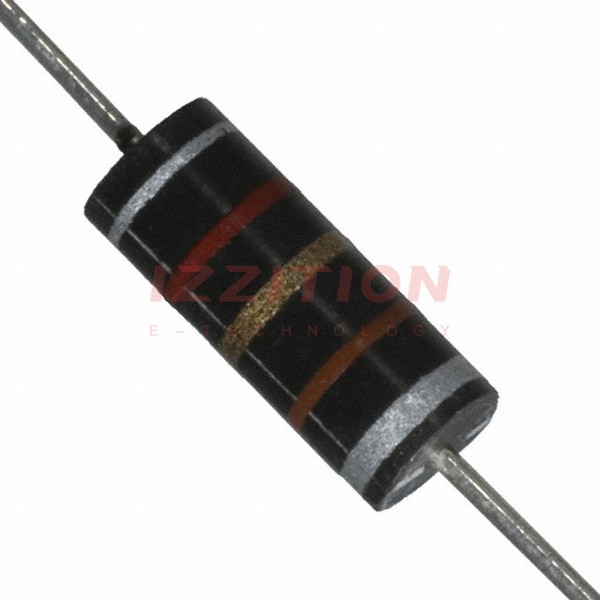

| Part Number | 9250A-122-RC | 9250A-222-RC | 9250A-125-RC | 9250A-152-RC | 9250A-123-RC | 9250A-822-RC | 9250A-126-RC | 9250A-102-RC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.2 µH | 2.2 µH | 1.2 mH | 1.5 µH | 12 µH | 8.2 µH | 12 mH | 1 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 895 mA | 650 mA | 60 mA | 815 mA | 200 mA | 250 mA | 23 mA | 1.07 A |
| Current - Saturation (Isat) | 895mA | 650mA | 35mA | 815mA | 200mA | 250mA | 13mA | 1.07A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 100mOhm Max | 190mOhm Max | 22.1Ohm Max | 120mOhm Max | 2Ohm Max | 1.32Ohm Max | 143Ohm Max | 70mOhm Max |
| Q @ Freq | 44 @ 7.9MHz | 44 @ 7.9MHz | 45 @ 250kHz | 44 @ 7.9MHz | 55 @ 2.5MHz | 50 @ 7.9MHz | 30 @ 79kHz | 40 @ 25MHz |
| Frequency - Self Resonant | 130MHz | 100MHz | 1.5MHz | 115MHz | 44MHz | 50MHz | 330kHz | 140MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz | 250 kHz | 7.9 MHz | 2.5 MHz | 7.9 MHz | 79 kHz | 25 MHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
