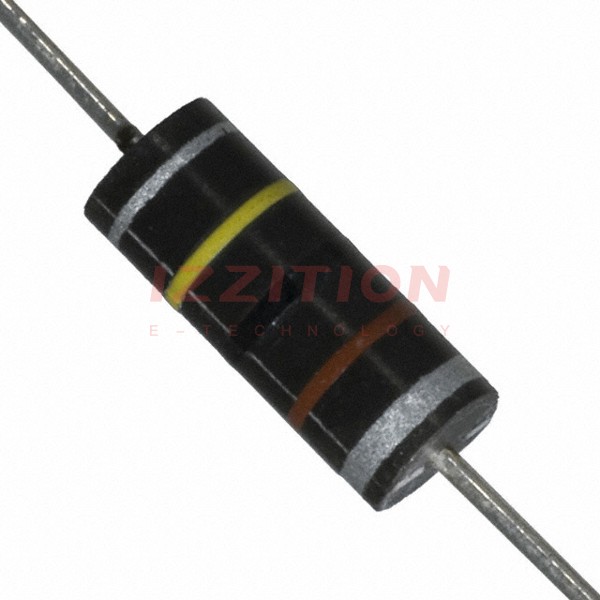

| Part Number | 9250A-107-RC | 9250A-101-RC | 9250A-102-RC | 9250A-103-RC | 9250A-104-RC | 9250A-105-RC | 9250A-106-RC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Obsolete |
| Type | Molded | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 mH | 100 nH | 1 µH | 10 µH | 100 µH | 1 mH | 10 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 11 mA | 1.79 A | 1.07 A | 220 mA | 160 mA | 70 mA | 24 mA |
| Current - Saturation (Isat) | 3mA | 1.79A | 1.07A | 220mA | 120mA | 40mA | 14mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 678Ohm Max | 25mOhm Max | 70mOhm Max | 1.62Ohm Max | 3.12Ohm Max | 17.5Ohm Max | 137Ohm Max |
| Q @ Freq | 18 @ 79kHz | 50 @ 25MHz | 40 @ 25MHz | 50 @ 7.9MHz | 50 @ 2.5MHz | 60 @ 790kHz | 40 @ 250kHz |
| Frequency - Self Resonant | 110kHz | 250MHz | 140MHz | 46MHz | 10MHz | 3.8MHz | 470kHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 79 kHz | 25 MHz | 25 MHz | 7.9 MHz | 2.5 MHz | 790 kHz | 250 kHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - |
