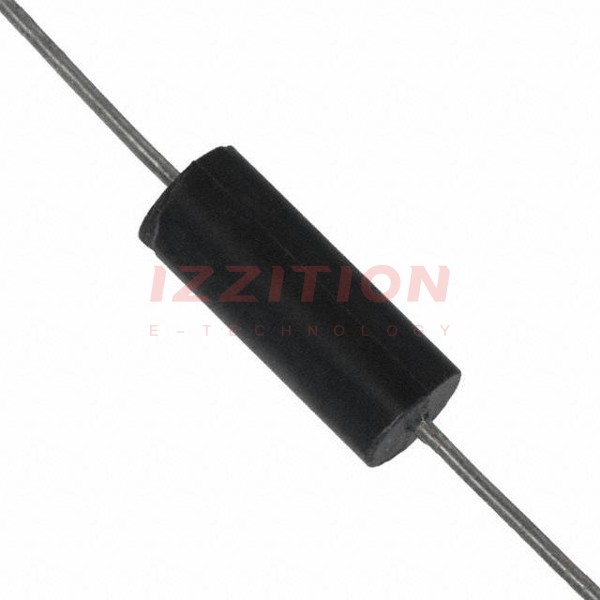

| Part Number | 9250-471-RC | 9250-472-RC | 9250-473-RC | 9250-474-RC | 9250-475-RC | 9250-476-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 470 nH | 4.7 µH | 47 µH | 470 µH | 4.7 mH | 47 mH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 565 mA | 380 mA | 195 mA | 92 mA | 31 mA | 13 mA |
| Current - Saturation (Isat) | 565mA | 380mA | 175mA | 58mA | 19mA | 5.5mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 250mOhm Max | 550mOhm Max | 2.11Ohm Max | 9.5Ohm Max | 81.6Ohm Max | 473Ohm Max |
| Q @ Freq | 44 @ 25MHz | 44 @ 7.9MHz | 50 @ 2.5MHz | 60 @ 790kHz | 45 @ 250kHz | 23 @ 79kHz |
| Frequency - Self Resonant | 235MHz | 70MHz | 27MHz | 5.7MHz | 740kHz | 160kHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 25 MHz | 7.9 MHz | 2.5 MHz | 790 kHz | 250 kHz | 79 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
