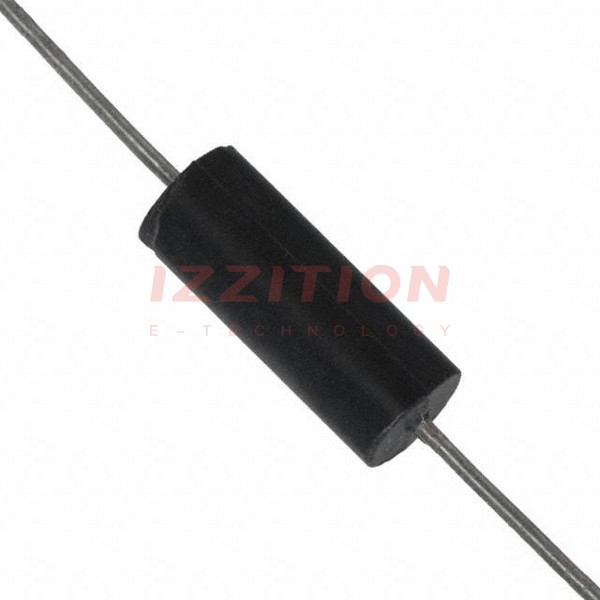

| Part Number | 9250-392-RC | 9250A-392-RC | 9250-393-RC | 9250-394-RC | 9250-395-RC | 9250-332-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Molded | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 3.9 µH | 3.9 µH | 39 µH | 390 µH | 3.9 mH | 3.3 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 450 mA | 450 mA | 205 mA | 105 mA | 35 mA | 480 mA |
| Current - Saturation (Isat) | 450mA | 450mA | 180mA | 60mA | 20mA | 480mA |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 400mOhm Max | 400mOhm Max | 1.93Ohm Max | 7.4Ohm Max | 73.8Ohm Max | 350mOhm Max |
| Q @ Freq | 44 @ 7.9MHz | 44 @ 7.9MHz | 50 @ 2.5MHz | 60 @ 790kHz | 45 @ 250kHz | 44 @ 7.9MHz |
| Frequency - Self Resonant | 75MHz | 75MHz | 29MHz | 6.2MHz | 800kHz | 85MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz | 2.5 MHz | 790 kHz | 250 kHz | 7.9 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
