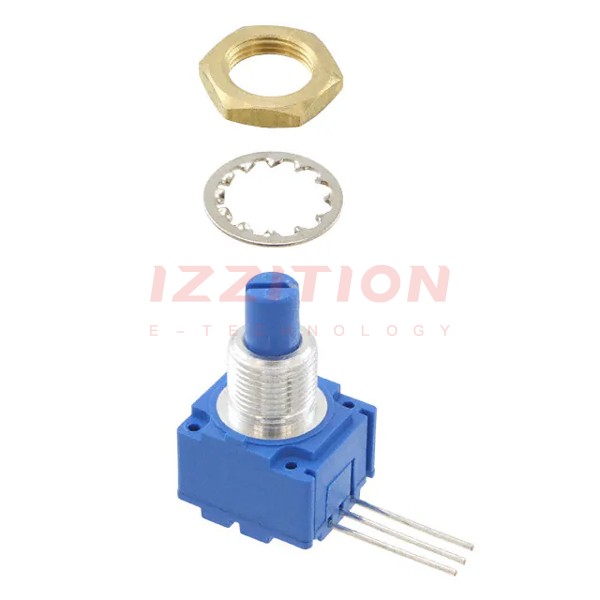

| Part Number | 91R1A-R16-A13L | 91R1A-R16-A15L | 91R1D-R16-A13L |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance (Ohms) | 5k | 10k | 5k |
| Tolerance | ±10% | ±10% | ±10% |
| Power (Watts) | 2W | 2W | 2W |
| Built in Switch | None | None | None |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | ±150ppm/°C | ±150ppm/°C | ±150ppm/°C |
| Rotation | 300° | 300° | 300° |
| Resistive Material | Cermet | Cermet | Cermet |
| Termination Style | PC Pins | PC Pins | PC Pins |
| Actuator Type | Slotted | Slotted | Slotted |
| Actuator Length | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) |
| Actuator Diameter | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Bushing Thread | M10 x 0.75 | M10 x 0.75 | M10 x 0.75 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
