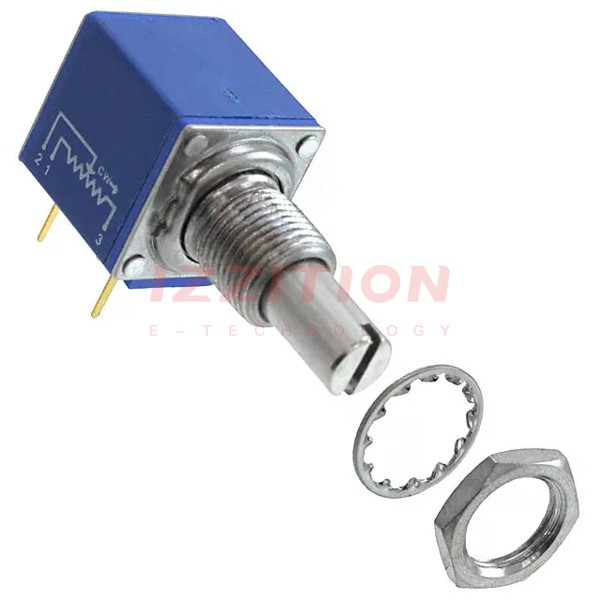

| Part Number | 83A1D-B24-J15L | 84A1D-B24-J15L | 83A1A-B24-J15L | 83A1D-B24-J10L | 83A1D-B24-J13L |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 10k | 10k | 10k | 1K | 5k |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 1W | 1W | 1W | 1W | 1W |
| Built in Switch | None | None | None | None | None |
| Number of Turns | 10 | 10 | 10 | 10 | 10 |
| Features | - | - | - | - | - |
| Taper | Linear | Linear | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | User Defined | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Rotation | 3600° | 3600° | 3600° | 3600° | 3600° |
| Resistive Material | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Termination Style | PC Pins | Solder Lug | PC Pins | PC Pins | PC Pins |
| Actuator Type | Slotted | Slotted | Slotted | Slotted | Slotted |
| Actuator Length | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
