Please send RFQ , we will respond immediately.

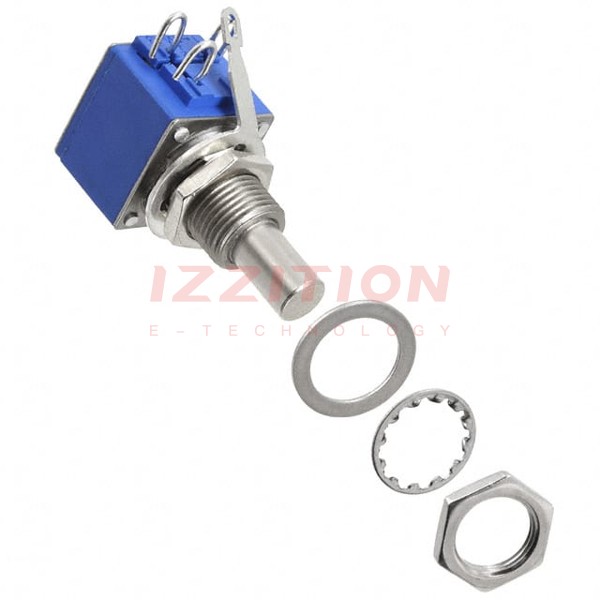

| Part Number | 82A1A-B24-D18L | 81A1A-B24-D18L | 82A1A-B24-A18L |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Resistance (Ohms) | 50k | 50k | 50k |
| Tolerance | ±20% | ±20% | ±10% |
| Power (Watts) | 0.5W, 1/2W | 0.5W, 1/2W | 2W |
| Built in Switch | None | None | None |
| Number of Turns | 1 | 1 | 1 |
| Features | - | - | - |
| Taper | Logarithmic | Logarithmic | Linear |
| Number of Gangs | 1 | 1 | 1 |
| Adjustment Type | User Defined | Side Adjustment | User Defined |
| Temperature Coefficient | ±1000ppm/°C | ±1000ppm/°C | ±150ppm/°C |
| Rotation | 300° | 300° | 300° |
| Resistive Material | Conductive Plastic | Conductive Plastic | Cermet |
| Termination Style | Solder Hook | PC Pins | Solder Hook |
| Actuator Type | Slotted | Slotted | Slotted |
| Actuator Length | 0.750" (19.05mm) | 0.750" (19.05mm) | 0.750" (19.05mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
