Please send RFQ , we will respond immediately.

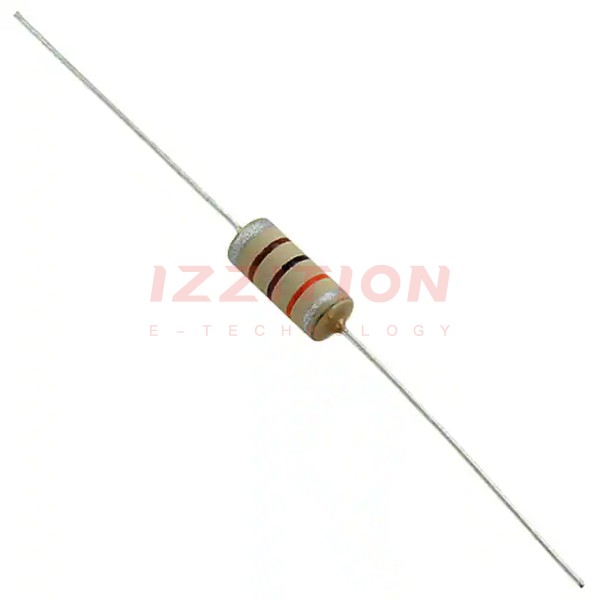

| Part Number | 8250-683K-RC | 8250-183K-RC | 8250-682K-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 68 mH | 18 mH | 6.8 mH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 24 mA | 48 mA | 62 mA |
| Current - Saturation (Isat) | 4mA | 10mA | 16mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 410Ohm Max | 104Ohm Max | 62Ohm Max |
| Q @ Freq | 50 @ 79kHz | 50 @ 79kHz | 70 @ 250kHz |
| Frequency - Self Resonant | 350kHz | 720kHz | 1.5MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 79 kHz | 79 kHz | 250 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) |
| Height - Seated (Max) | - | - | - |
