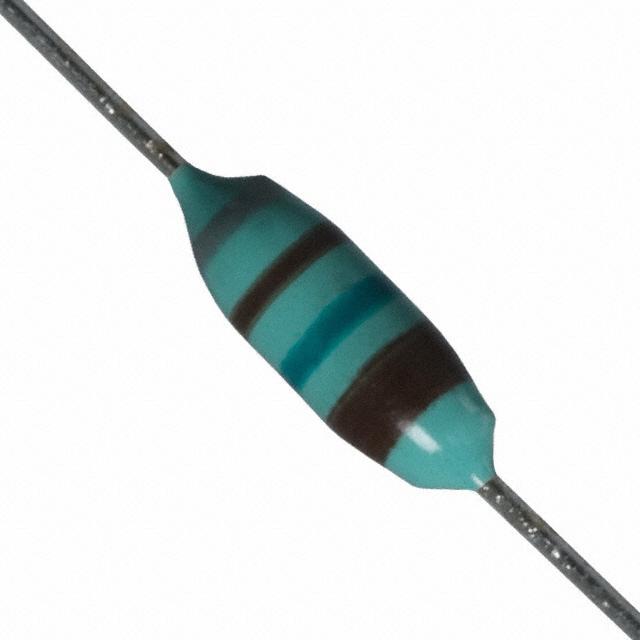

| Part Number | 8230-72 | 8230-74 | 8230-76 | 8230-78 | 8230-82 | 8230-92 | 8230-02 | 8230-12 | 8230-22 | 8230-32 | 8230-42 | 8230-52 | 8230-62 | 8230-70 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Phenolic | Phenolic | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 150 µH | 180 µH | 220 µH | 270 µH | 390 µH | 1 mH | 180 nH | 470 nH | 1.2 µH | 3.3 µH | 8.2 µH | 22 µH | 56 µH | 120 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 85 mA | 79 mA | 73 mA | 65 mA | 55 mA | 38 mA | 1.01 A | 590 mA | 825 mA | 380 mA | 210 mA | 190 mA | 145 mA | 97 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 15Ohm Max | 17Ohm Max | 21Ohm Max | 25Ohm Max | 35Ohm Max | 72Ohm Max | 120mOhm Max | 350mOhm Max | 180mOhm Max | 850mOhm Max | 2.7Ohm Max | 3.3Ohm Max | 5.7Ohm Max | 13Ohm Max |
| Q @ Freq | 30 @ 790kHz | 30 @ 790kHz | 30 @ 790kHz | 30 @ 790kHz | 30 @ 790kHz | 30 @ 790kHz | 35 @ 25MHz | 30 @ 25MHz | 25 @ 7.9MHz | 45 @ 7.9MHz | 55 @ 7.9MHz | 50 @ 2.5MHz | 45 @ 2.5MHz | 30 @ 790kHz |
| Frequency - Self Resonant | 11MHz | 10MHz | 9MHz | 8MHz | 6.6MHz | 3.4MHz | 550MHz | 340MHz | 150MHz | 90MHz | 55MHz | 25MHz | 18MHz | 12MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 790 kHz | 790 kHz | 790 kHz | 790 kHz | 790 kHz | 790 kHz | 25 MHz | 25 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz | 2.5 MHz | 2.5 MHz | 790 kHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
