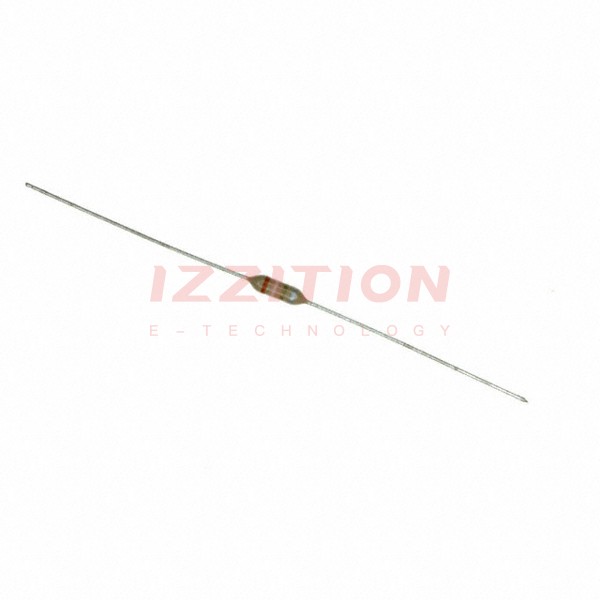

| Part Number | 8230-34-RC | 8230-74-RC | 8230-38-RC | 8230-64-RC | 8230-44-RC | 8230-94-RC | 8230-36-RC | 8230-54-RC | 8230-84-RC | 8230-04-RC | 8230-14-RC | 8230-24-RC | 8230-30-RC | 8230-32-RC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Phenolic | Ferrite | Ferrite | Ferrite | Phenolic | Phenolic | Ferrite | Ferrite | Ferrite |
| Inductance | 3.9 µH | 180 µH | 5.6 µH | 68 µH | 10 µH | 100 nH | 4.7 µH | 27 µH | 470 µH | 220 nH | 560 nH | 1.5 µH | 2.7 µH | 3.3 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 350 mA | 79 mA | 260 mA | 135 mA | 180 mA | 1.1 A | 320 mA | 185 mA | 50 mA | 935 mA | 495 mA | 745 mA | 495 mA | 380 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1Ohm Max | 17Ohm Max | 1.8Ohm Max | 6.7Ohm Max | 3.7Ohm Max | 70mOhm Max | 1.2Ohm Max | 3.5Ohm Max | 42Ohm Max | 140mOhm Max | 500mOhm Max | 220mOhm Max | 500mOhm Max | 850mOhm Max |
| Q @ Freq | 45 @ 7.9MHz | 30 @ 790kHz | 50 @ 7.9MHz | 50 @ 2.5MHz | 55 @ 7.9MHz | 40 @ 25MHz | 45 @ 7.9MHz | 50 @ 2.5MHz | 30 @ 790kHz | 33 @ 25MHz | 30 @ 25MHz | 28 @ 7.9MHz | 37 @ 7.9MHz | 45 @ 7.9MHz |
| Frequency - Self Resonant | 82MHz | 10MHz | 68MHz | 15MHz | 50MHz | 690MHz | 75MHz | 22MHz | 6MHz | 510MHz | 300MHz | 140MHz | 100MHz | 90MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 790 kHz | 7.9 MHz | 2.5 MHz | 7.9 MHz | 25 MHz | 7.9 MHz | 2.5 MHz | 790 kHz | 25 MHz | 25 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
