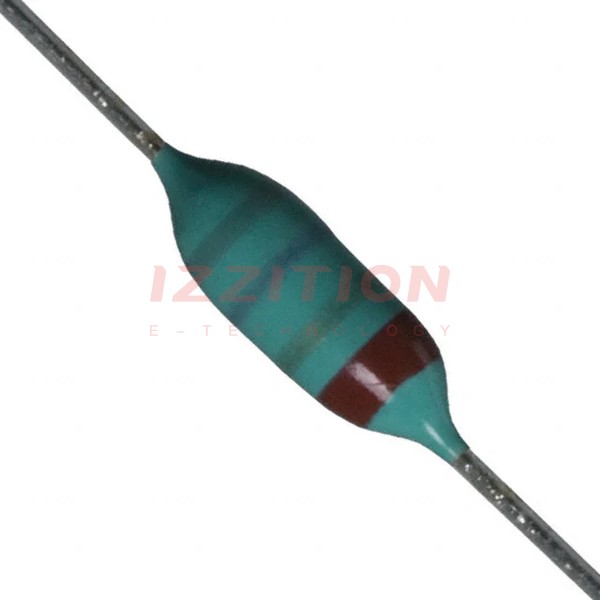

| Part Number | 8230-30 | 8230-32 | 8230-34 | 8230-36 | 8230-38 | 8230-40 | 8230-50 | 8230-60 | 8230-70 | 8230-80 | 8230-90 | 8230-00 | 8230-10 | 8230-20 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Phenolic | Phenolic | Phenolic |
| Inductance | 2.7 µH | 3.3 µH | 3.9 µH | 4.7 µH | 5.6 µH | 6.8 µH | 18 µH | 47 µH | 120 µH | 330 µH | 820 µH | 150 nH | 390 nH | 1 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 495 mA | 380 mA | 350 mA | 320 mA | 260 mA | 245 mA | 195 mA | 165 mA | 97 mA | 62 mA | 40 mA | 1.1 A | 640 mA | 350 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 500mOhm Max | 850mOhm Max | 1Ohm Max | 1.2Ohm Max | 1.8Ohm Max | 2Ohm Max | 3.1Ohm Max | 4.5Ohm Max | 13Ohm Max | 28Ohm Max | 65Ohm Max | 100mOhm Max | 300mOhm Max | 1Ohm Max |
| Q @ Freq | 37 @ 7.9MHz | 45 @ 7.9MHz | 45 @ 7.9MHz | 45 @ 7.9MHz | 50 @ 7.9MHz | 50 @ 7.9MHz | 50 @ 2.5MHz | 45 @ 2.5MHz | 30 @ 790kHz | 30 @ 790kHz | 30 @ 790kHz | 38 @ 25MHz | 30 @ 25MHz | 25 @ 25MHz |
| Frequency - Self Resonant | 100MHz | 90MHz | 82MHz | 75MHz | 68MHz | 60MHz | 32MHz | 20MHz | 12MHz | 4MHz | 3.8MHz | 600MHz | 380MHz | 230MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz | 2.5 MHz | 2.5 MHz | 790 kHz | 790 kHz | 790 kHz | 25 MHz | 25 MHz | 25 MHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
