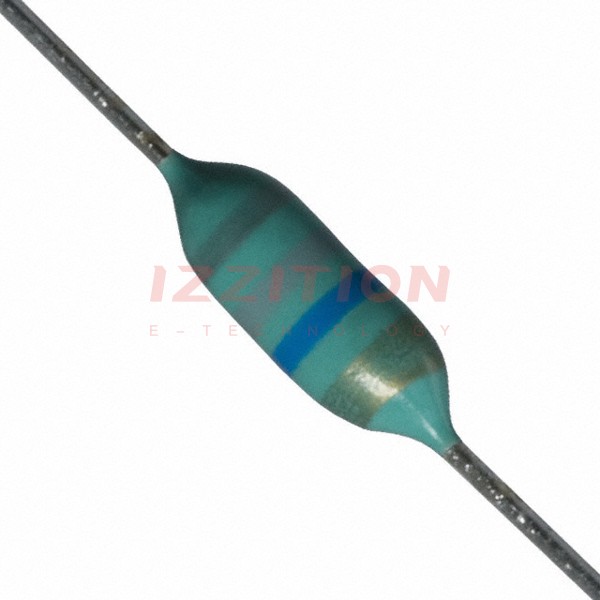

| Part Number | 8230-16 | 8230-96 | 8230-18 | 8230-26 | 8230-36 | 8230-46 | 8230-56 | 8230-66 | 8230-76 | 8230-86 | 8230-06 | 8230-10 | 8230-12 | 8230-14 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Wirewound | Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Phenolic | Phenolic | Phenolic | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Phenolic | Phenolic | Phenolic | Phenolic |
| Inductance | 680 nH | 120 nH | 820 nH | 1.8 µH | 4.7 µH | 12 µH | 33 µH | 82 µH | 220 µH | 560 µH | 270 nH | 390 nH | 470 nH | 560 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 450 mA | 1.1 A | 380 mA | 640 mA | 320 mA | 210 mA | 187 mA | 130 mA | 73 mA | 48 mA | 875 mA | 640 mA | 590 mA | 495 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 600mOhm Max | 80mOhm Max | 850mOhm Max | 300mOhm Max | 1.2Ohm Max | 2.7Ohm Max | 3.4Ohm Max | 7.3Ohm Max | 21Ohm Max | 46Ohm Max | 160mOhm Max | 300mOhm Max | 350mOhm Max | 500mOhm Max |
| Q @ Freq | 28 @ 25MHz | 40 @ 25MHz | 28 @ 25MHz | 30 @ 7.9MHz | 45 @ 7.9MHz | 45 @ 2.5MHz | 45 @ 2.5MHz | 50 @ 2.5MHz | 30 @ 790kHz | 30 @ 790kHz | 33 @ 25MHz | 30 @ 25MHz | 30 @ 25MHz | 30 @ 25MHz |
| Frequency - Self Resonant | 275MHz | 650MHz | 250MHz | 125MHz | 75MHz | 40MHz | 24MHz | 14MHz | 9MHz | 5MHz | 430MHz | 380MHz | 340MHz | 300MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz | 25 MHz | 7.9 MHz | 7.9 MHz | 2.5 MHz | 2.5 MHz | 2.5 MHz | 790 kHz | 790 kHz | 25 MHz | 25 MHz | 25 MHz | 25 MHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
