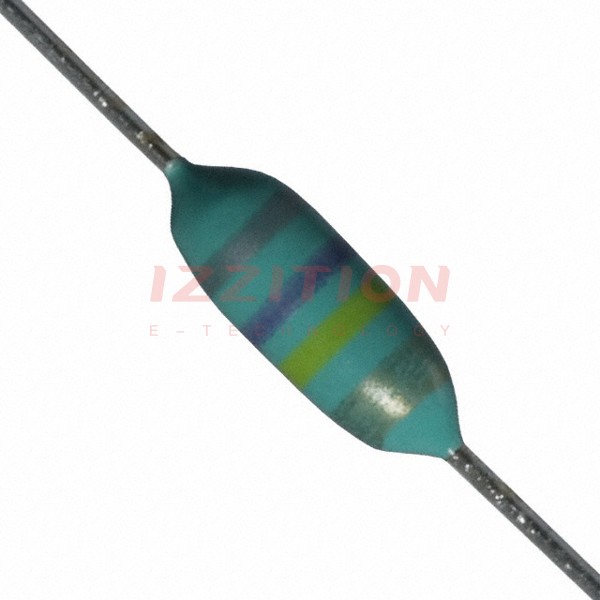

| Part Number | 8230-12-RC | 8230-32-RC | 8230-22-RC | 8230-16-RC | 8230-42-RC | 8230-62-RC | 8230-72-RC | 8230-14-RC | 8230-52-RC | 8230-92-RC | 8230-18-RC | 8230-82-RC | 8230-02-RC | 8230-10-RC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Wirewound | Wirewound |
| Material - Core | Phenolic | Ferrite | Ferrite | Phenolic | Ferrite | Ferrite | Ferrite | Phenolic | Ferrite | Ferrite | Phenolic | Ferrite | Phenolic | Phenolic |
| Inductance | 470 nH | 3.3 µH | 1.2 µH | 680 nH | 8.2 µH | 56 µH | 150 µH | 560 nH | 22 µH | 1 mH | 820 nH | 390 µH | 180 nH | 390 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 590 mA | 380 mA | 825 mA | 450 mA | 210 mA | 145 mA | 85 mA | 495 mA | 190 mA | 38 mA | 380 mA | 55 mA | 1.01 A | 640 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 350mOhm Max | 850mOhm Max | 180mOhm Max | 600mOhm Max | 2.7Ohm Max | 5.7Ohm Max | 15Ohm Max | 500mOhm Max | 3.3Ohm Max | 72Ohm Max | 850mOhm Max | 35Ohm Max | 120mOhm Max | 300mOhm Max |
| Q @ Freq | 30 @ 25MHz | 45 @ 7.9MHz | 25 @ 7.9MHz | 28 @ 25MHz | 55 @ 7.9MHz | 45 @ 2.5MHz | 30 @ 790kHz | 30 @ 25MHz | 50 @ 2.5MHz | 30 @ 790kHz | 28 @ 25MHz | 30 @ 790kHz | 35 @ 25MHz | 30 @ 25MHz |
| Frequency - Self Resonant | 340MHz | 90MHz | 150MHz | 275MHz | 55MHz | 18MHz | 11MHz | 300MHz | 25MHz | 3.4MHz | 250MHz | 6.6MHz | 550MHz | 380MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 25 MHz | 7.9 MHz | 7.9 MHz | 25 MHz | 7.9 MHz | 2.5 MHz | 790 kHz | 25 MHz | 2.5 MHz | 790 kHz | 25 MHz | 790 kHz | 25 MHz | 25 MHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
