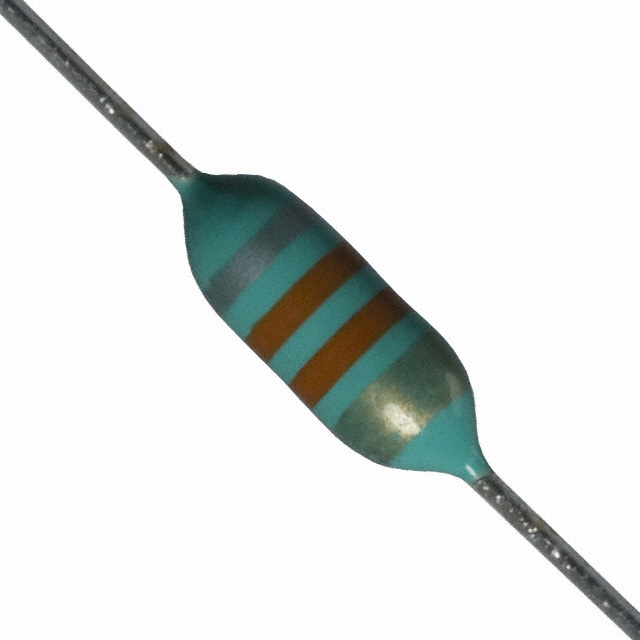

| Part Number | 8230-08-RC | 8230-28-RC | 8230-38-RC | 8230-58-RC | 8230-48-RC | 8230-68-RC | 8230-18-RC | 8230-78-RC | 8230-88-RC | 8230-00-RC | 8230-02-RC | 8230-04-RC | 8230-06-RC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Phenolic | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Phenolic | Ferrite | Ferrite | Phenolic | Phenolic | Phenolic | Phenolic |
| Inductance | 330 nH | 2.2 µH | 5.6 µH | 39 µH | 15 µH | 100 µH | 820 nH | 270 µH | 680 µH | 150 nH | 180 nH | 220 nH | 270 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 780 mA | 550 mA | 260 mA | 180 mA | 205 mA | 125 mA | 380 mA | 65 mA | 42 mA | 1.1 A | 1.01 A | 935 mA | 875 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 200mOhm Max | 400mOhm Max | 1.8Ohm Max | 3.6Ohm Max | 2.8Ohm Max | 8Ohm Max | 850mOhm Max | 25Ohm Max | 60Ohm Max | 100mOhm Max | 120mOhm Max | 140mOhm Max | 160mOhm Max |
| Q @ Freq | 30 @ 25MHz | 30 @ 7.9MHz | 50 @ 7.9MHz | 45 @ 2.5MHz | 45 @ 2.5MHz | 50 @ 2.5MHz | 28 @ 25MHz | 30 @ 790kHz | 30 @ 790kHz | 38 @ 25MHz | 35 @ 25MHz | 33 @ 25MHz | 33 @ 25MHz |
| Frequency - Self Resonant | 410MHz | 115MHz | 68MHz | 22MHz | 35MHz | 13MHz | 250MHz | 8MHz | 4.2MHz | 600MHz | 550MHz | 510MHz | 430MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 25 MHz | 7.9 MHz | 7.9 MHz | 2.5 MHz | 2.5 MHz | 2.5 MHz | 25 MHz | 790 kHz | 790 kHz | 25 MHz | 25 MHz | 25 MHz | 25 MHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - |
