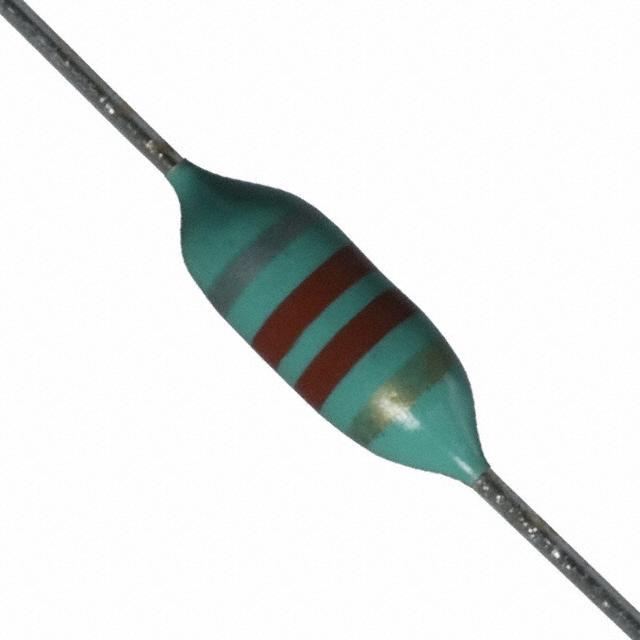

| Part Number | 8230-04-RC | 8230-74-RC | 8230-34-RC | 8230-64-RC | 8230-24-RC | 8230-14-RC | 8230-08-RC | 8230-06-RC | 8230-44-RC | 8230-94-RC | 8230-54-RC | 8230-84-RC | 8230-00-RC | 8230-02-RC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Wirewound | Wirewound | Drum Core, Wirewound | Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Wirewound | Wirewound |
| Material - Core | Phenolic | Ferrite | Ferrite | Ferrite | Ferrite | Phenolic | Phenolic | Phenolic | Ferrite | Phenolic | Ferrite | Ferrite | Phenolic | Phenolic |
| Inductance | 220 nH | 180 µH | 3.9 µH | 68 µH | 1.5 µH | 560 nH | 330 nH | 270 nH | 10 µH | 100 nH | 27 µH | 470 µH | 150 nH | 180 nH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 935 mA | 79 mA | 350 mA | 135 mA | 745 mA | 495 mA | 780 mA | 875 mA | 180 mA | 1.1 A | 185 mA | 50 mA | 1.1 A | 1.01 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 140mOhm Max | 17Ohm Max | 1Ohm Max | 6.7Ohm Max | 220mOhm Max | 500mOhm Max | 200mOhm Max | 160mOhm Max | 3.7Ohm Max | 70mOhm Max | 3.5Ohm Max | 42Ohm Max | 100mOhm Max | 120mOhm Max |
| Q @ Freq | 33 @ 25MHz | 30 @ 790kHz | 45 @ 7.9MHz | 50 @ 2.5MHz | 28 @ 7.9MHz | 30 @ 25MHz | 30 @ 25MHz | 33 @ 25MHz | 55 @ 7.9MHz | 40 @ 25MHz | 50 @ 2.5MHz | 30 @ 790kHz | 38 @ 25MHz | 35 @ 25MHz |
| Frequency - Self Resonant | 510MHz | 10MHz | 82MHz | 15MHz | 140MHz | 300MHz | 410MHz | 430MHz | 50MHz | 690MHz | 22MHz | 6MHz | 600MHz | 550MHz |
| Ratings | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 25 MHz | 790 kHz | 7.9 MHz | 2.5 MHz | 7.9 MHz | 25 MHz | 25 MHz | 25 MHz | 7.9 MHz | 25 MHz | 2.5 MHz | 790 kHz | 25 MHz | 25 MHz |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
