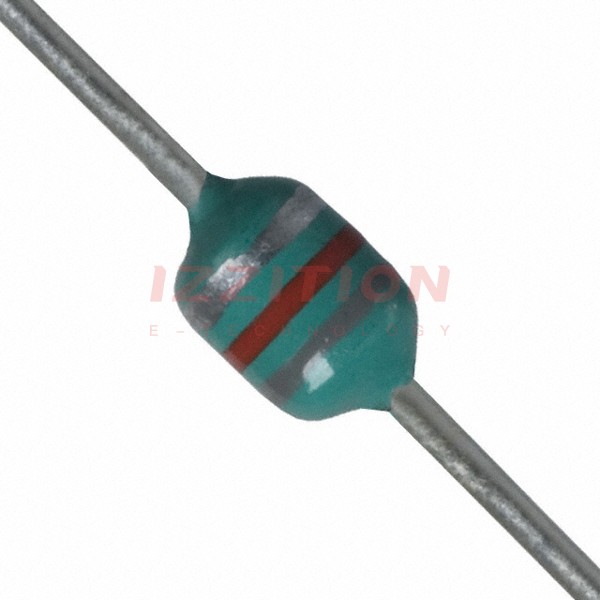

| Part Number | 79FR82M-RC | 79FR12M-RC | 79FR22M-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 820 nH | 120 nH | 220 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 290 mA | 660 mA | 400 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 740mOhm Max | 200mOhm Max | 400mOhm Max |
| Q @ Freq | 35 @ 25MHz | 35 @ 25MHz | 35 @ 25MHz |
| Frequency - Self Resonant | 150MHz | 300MHz | 150MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz | 25 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) |
| Height - Seated (Max) | - | - | - |
