Please send RFQ , we will respond immediately.

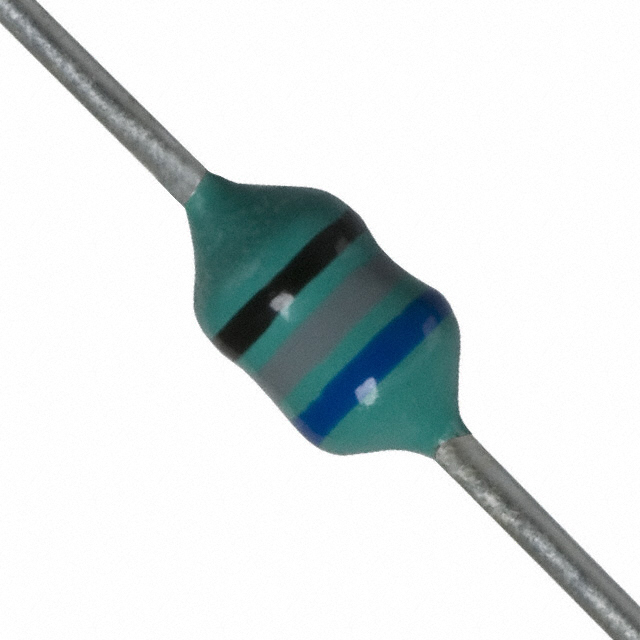

| Part Number | 79F680K | 79F180K |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 68 µH | 18 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 64 mA | 140 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 7.2Ohm Max | 3.1Ohm Max |
| Q @ Freq | 40 @ 2.5MHz | 40 @ 2.5MHz |
| Frequency - Self Resonant | 10MHz | 17MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.5 MHz | 2.5 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) |
| Height - Seated (Max) | - | - |
