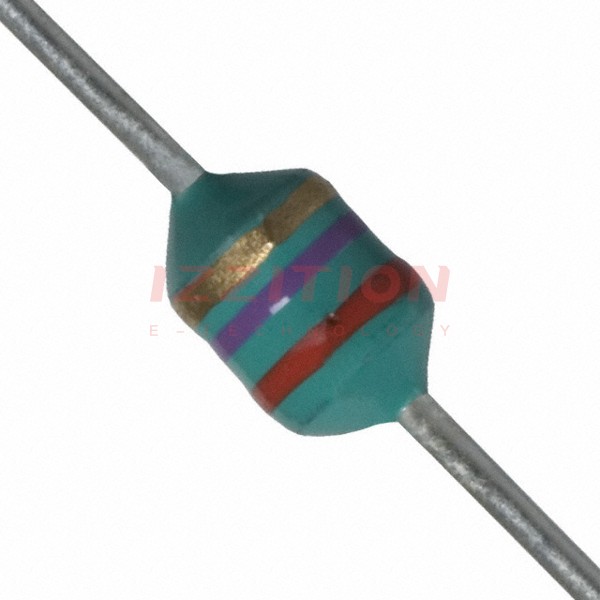

| Part Number | 79F2R7K-RC | 78F2R7K-RC | 79F2R2K-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 2.7 µH | 2.7 µH | 2.2 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 220 mA | 595 mA | 230 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.3Ohm Max | 280mOhm Max | 1.2Ohm Max |
| Q @ Freq | 40 @ 7.9MHz | 50 @ 7.9MHz | 40 @ 7.9MHz |
| Frequency - Self Resonant | 40MHz | 95MHz | 45MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz | 7.9 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) |
| Height - Seated (Max) | - | - | - |
