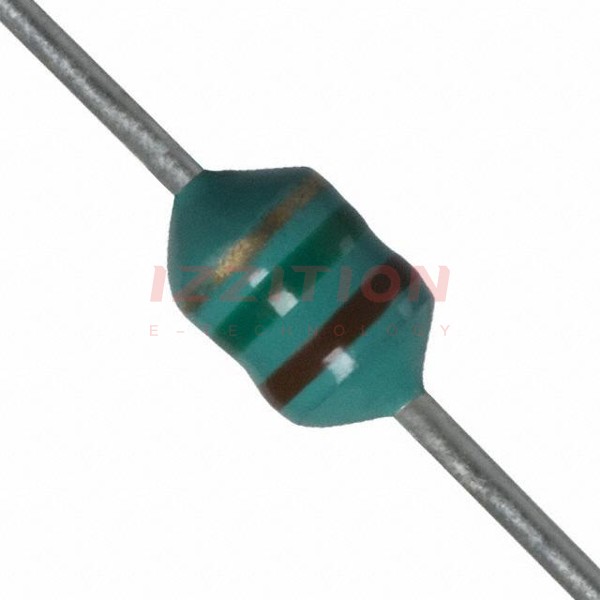

| Part Number | 79F1R5K-TR-RC | 79F1R8K-TR-RC | 79F1R0K-TR-RC | 79F1R2K-TR-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.5 µH | 1.8 µH | 1 µH | 1.2 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 250 mA | 240 mA | 270 mA | 260 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1Ohm Max | 1.1Ohm Max | 800mOhm Max | 900mOhm Max |
| Q @ Freq | 40 @ 7.9MHz | 40 @ 7.9MHz | 35 @ 25MHz | 40 @ 7.9MHz |
| Frequency - Self Resonant | 70MHz | 60MHz | 150MHz | 110MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz | 25 MHz | 7.9 MHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) |
| Height - Seated (Max) | - | - | - | - |
