Please send RFQ , we will respond immediately.

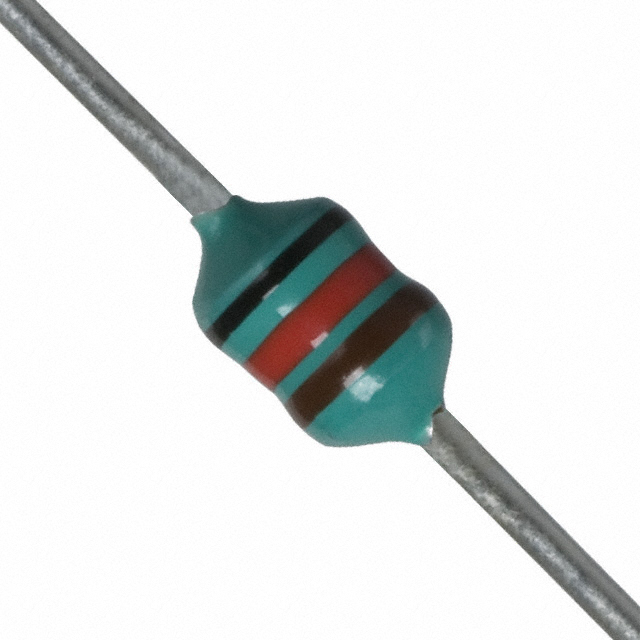

| Part Number | 79F120K-TR-RC | 79F1R0K-TR-RC | 79F220K-TR-RC | 79F121K-TR-RC | 79F150K-TR-RC | 79F180K-TR-RC | 79F820K-TR-RC | 79F100K-TR-RC |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 1 µH | 22 µH | 120 µH | 15 µH | 18 µH | 82 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 150 mA | 270 mA | 100 mA | 42 mA | 145 mA | 140 mA | 46 mA | 160 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.8Ohm Max | 800mOhm Max | 3.4Ohm Max | 13Ohm Max | 2.8Ohm Max | 3.1Ohm Max | 11Ohm Max | 2.4Ohm Max |
| Q @ Freq | 40 @ 2.5MHz | 35 @ 25MHz | 40 @ 2.5MHz | 40 @ 790kHz | 40 @ 2.5MHz | 40 @ 2.5MHz | 40 @ 2.5MHz | 40 @ 7.9MHz |
| Frequency - Self Resonant | 20MHz | 150MHz | 16MHz | 8MHz | 18MHz | 17MHz | 9.5MHz | 22MHz |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.5 MHz | 25 MHz | 2.5 MHz | 790 kHz | 2.5 MHz | 2.5 MHz | 2.5 MHz | 7.9 MHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
