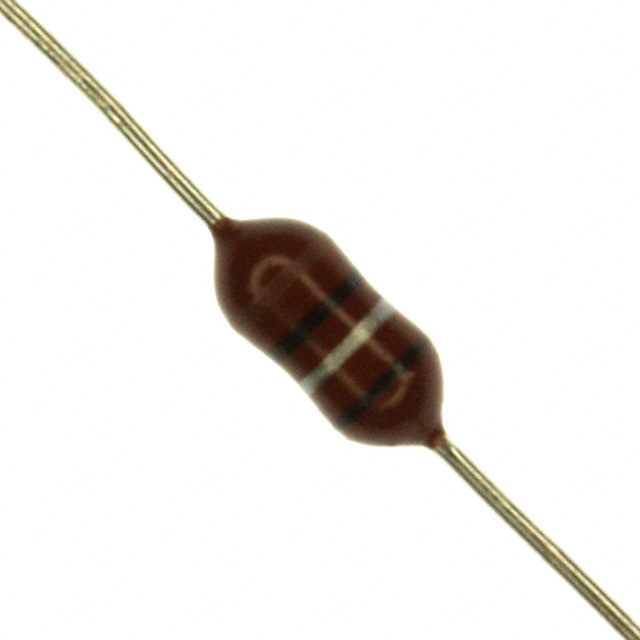

| Part Number | 78FR10M-RC | 78FR15M-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 100 nH | 150 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.2 A | 1.2 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 60mOhm Max | 70mOhm Max |
| Q @ Freq | 20 @ 25MHz | 20 @ 25MHz |
| Frequency - Self Resonant | 400MHz | 380MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 25 MHz | 25 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) |
| Height - Seated (Max) | - | - |
