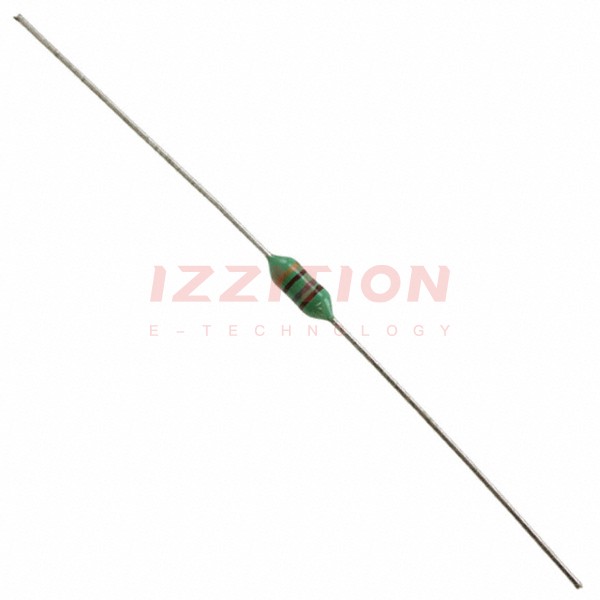

| Part Number | 78F181J-RC | 78F681J-RC | 78F101J-RC | 78F121J-RC | 78F151J-RC | 78F180J-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 180 µH | 680 µH | 100 µH | 120 µH | 150 µH | 18 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 140 mA | 68 mA | 165 mA | 160 mA | 150 mA | 315 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 6Ohm Max | 25.3Ohm Max | 4.1Ohm Max | 4.7Ohm Max | 5.4Ohm Max | 1Ohm Max |
| Q @ Freq | 60 @ 790kHz | 60 @ 790kHz | 60 @ 2.5MHz | 60 @ 790kHz | 60 @ 790kHz | 50 @ 2.5MHz |
| Frequency - Self Resonant | 4.35MHz | 2MHz | 5.5MHz | 5.4MHz | 4.75MHz | 15MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 790 kHz | 790 kHz | 2.5 MHz | 790 kHz | 790 kHz | 2.5 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
