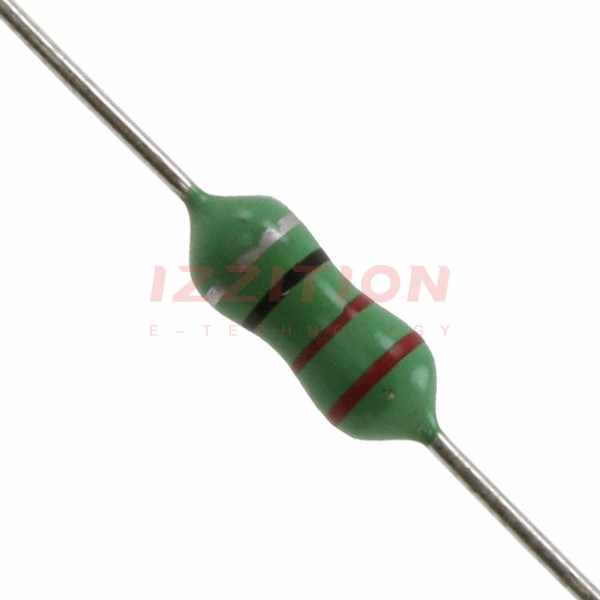

| Part Number | 77F221J-TR-RC | 77F271J-TR-RC | 77F821J-TR-RC | 77F121J-TR-RC | 77F220J-TR-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 220 µH | 270 µH | 820 µH | 120 µH | 22 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±10% |
| Current Rating (Amps) | 155 mA | 145 mA | 105 mA | 185 mA | 410 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 5Ohm Max | 6Ohm Max | 14Ohm Max | 3Ohm Max | 900mOhm Max |
| Q @ Freq | 60 @ 796kHz | 60 @ 796kHz | 45 @ 796kHz | 60 @ 796kHz | 60 @ 2.52MHz |
| Frequency - Self Resonant | 2.8MHz | 2.6MHz | 1.4MHz | 3.8MHz | 9.9MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 796 kHz | 796 kHz | 796 kHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - |
