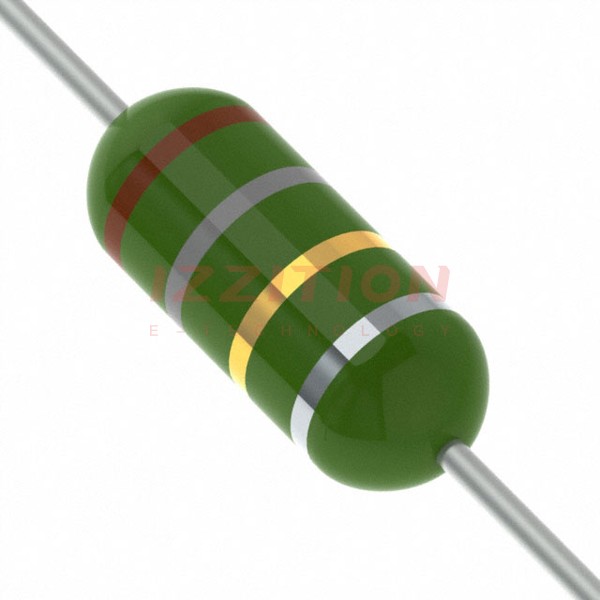

| Part Number | 77F1R8K-TR-RC | 78F1R8K-TR-RC | 77F6R8K-TR-RC | 77F1R0K-TR-RC | 77F1R2K-TR-RC | 77F1R5K-TR-RC |
|---|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.8 µH | 1.8 µH | 6.8 µH | 1 µH | 1.2 µH | 1.5 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 790 mA | 655 mA | 550 mA | 920 mA | 880 mA | 830 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 220mOhm Max | 230mOhm Max | 500mOhm Max | 170mOhm Max | 180mOhm Max | 200mOhm Max |
| Q @ Freq | 50 @ 7.96MHz | 50 @ 7.9MHz | 75 @ 7.96MHz | 50 @ 25.2MHz | 50 @ 7.96MHz | 50 @ 7.96MHz |
| Frequency - Self Resonant | 121MHz | 125MHz | 68MHz | 157MHz | 144MHz | 131MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 7.9 MHz | 7.96 MHz | 25.2 MHz | 7.96 MHz | 7.96 MHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
