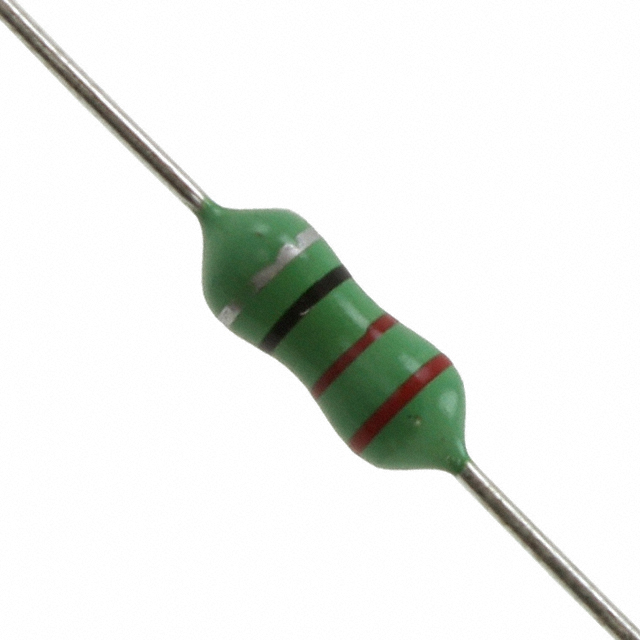

| Part Number | 77F181J | 78F181J | 77F681J | 77F101J | 77F151J |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 180 µH | 180 µH | 680 µH | 100 µH | 150 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 165 mA | 84 mA | 113 mA | 275 mA | 175 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4.6Ohm Max | 5Ohm Max | 9.4Ohm Max | 1.8Ohm Max | 4.2Ohm Max |
| Q @ Freq | 70 @ 796kHz | 60 @ 790kHz | 55 @ 796kHz | 30 @ 796kHz | 70 @ 796kHz |
| Frequency - Self Resonant | 3.3MHz | 4.3MHz | 1.95MHz | 4.8MHz | 3.5MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 790 kHz | 796 kHz | 796 kHz | 796 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - |
