Please send RFQ , we will respond immediately.

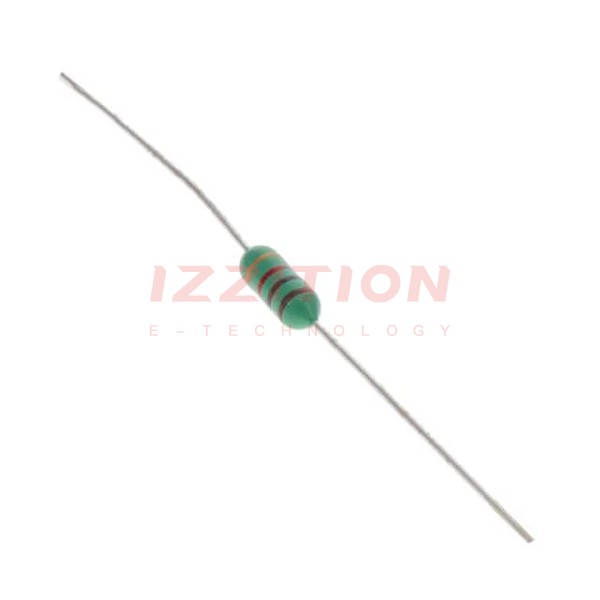

| Part Number | 77F102J-TR-RC | 78F102J-TR-RC | 77F101J-TR-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 1 mH | 1 mH | 100 µH |
| Tolerance | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 100 mA | 60 mA | 275 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 20Ohm Max | 31.4Ohm Max | 2.5Ohm Max |
| Q @ Freq | 50 @ 796kHz | 60 @ 790kHz | 30 @ 2.52MHz |
| Frequency - Self Resonant | 1.2MHz | 1.2MHz | 4.8MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 790 kHz | 2.52 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) |
| Height - Seated (Max) | - | - | - |
