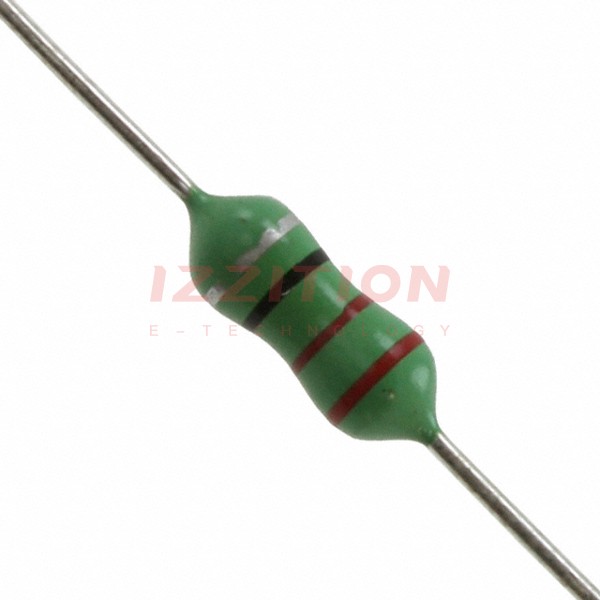

Bourns Inc.-77F101J-TR-RC - Fixed Inductors Product Specifications and Latest Quotes

Part Number	77F101J-TR-RC	77F102J-TR-RC	78F101J-TR-RC	77F151J-TR-RC	77F121J-TR-RC	77F181J-TR-RC
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Product Status	Active	Active	Active	Active	Active	Active
Type	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound	Drum Core, Wirewound
Material - Core	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Inductance	100 µH	1 mH	100 µH	150 µH	120 µH	180 µH
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%
Current Rating (Amps)	275 mA	100 mA	165 mA	175 mA	185 mA	165 mA
Current - Saturation (Isat)	-	-	-	-	-	-
Shielding	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
DC Resistance (DCR)	2.5Ohm Max	20Ohm Max	4.1Ohm Max	4Ohm Max	3Ohm Max	4.5Ohm Max
Q @ Freq	30 @ 2.52MHz	50 @ 796kHz	60 @ 2.5MHz	60 @ 796kHz	60 @ 796kHz	60 @ 796kHz
Frequency - Self Resonant	4.8MHz	1.2MHz	5.5MHz	3.5MHz	3.8MHz	3MHz
Ratings	-	-	-	-	-	-
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Inductance Frequency - Test	2.52 MHz	796 kHz	2.5 MHz	796 kHz	796 kHz	796 kHz
Features	-	-	-	-	-	-
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	Axial	Axial	Axial	Axial	Axial	Axial
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.157" Dia x 0.410" L (3.99mm x 10.41mm)	0.157" Dia x 0.410" L (3.99mm x 10.41mm)	0.110" Dia x 0.280" L (2.79mm x 7.11mm)	0.157" Dia x 0.410" L (3.99mm x 10.41mm)	0.157" Dia x 0.410" L (3.99mm x 10.41mm)	0.157" Dia x 0.410" L (3.99mm x 10.41mm)
Height - Seated (Max)	-	-	-	-	-	-

Bourns Inc. 77F101J-TR-RC
