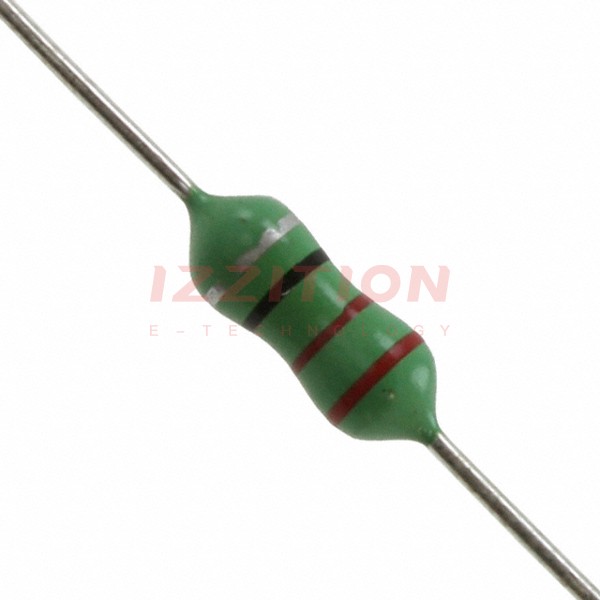

| Part Number | 77F101J | 78F101J | 77F151J | 77F181J | 77F102J |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 100 µH | 150 µH | 180 µH | 1 mH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 275 mA | 125 mA | 175 mA | 165 mA | 100 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.8Ohm Max | 3.5Ohm Max | 4.2Ohm Max | 4.6Ohm Max | 14Ohm Max |
| Q @ Freq | 30 @ 796kHz | 60 @ 2.5MHz | 70 @ 796kHz | 70 @ 796kHz | 50 @ 796kHz |
| Frequency - Self Resonant | 4.8MHz | 5.5MHz | 3.5MHz | 3.3MHz | 1.4MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 2.5 MHz | 796 kHz | 796 kHz | 796 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) |
| Height - Seated (Max) | - | - | - | - | - |
