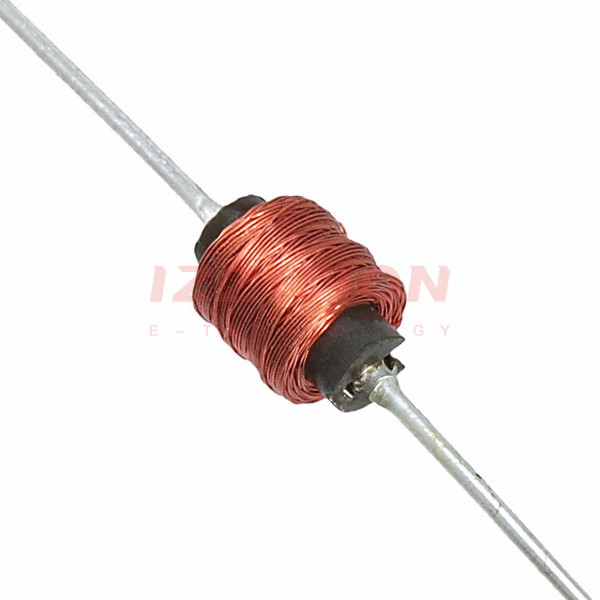

| Part Number | 70F824AI-RC | 70F224AI-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron |
| Inductance | 820 µH | 220 µH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 80 mA | 114 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 22.9Ohm Max | 11.5Ohm Max |
| Q @ Freq | 33 @ 790kHz | 46 @ 790kHz |
| Frequency - Self Resonant | 1.6MHz | 2.5MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 790 kHz | 790 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.210" Dia x 0.250" L (5.33mm x 6.35mm) | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) |
| Height - Seated (Max) | - | - |
