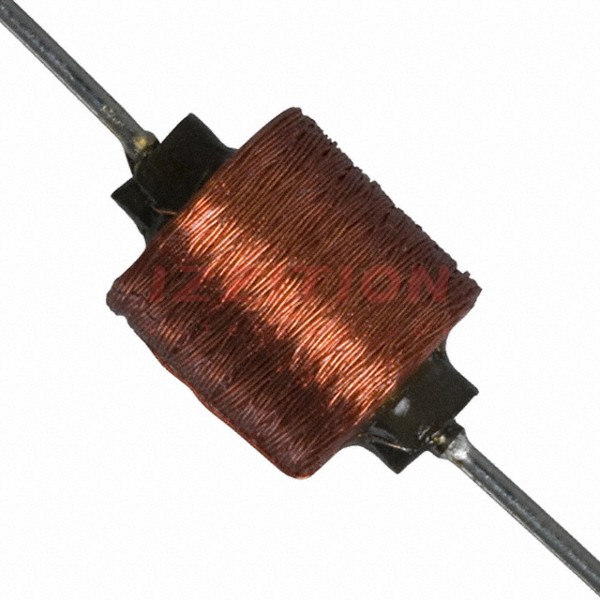

| Part Number | 70F683AI | 70F686AI |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron |
| Inductance | 6.8 mH | 6.8 µH |
| Tolerance | ±5% | ±10% |
| Current Rating (Amps) | 43 mA | 566 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 78Ohm Max | 624mOhm Max |
| Q @ Freq | 51 @ 250kHz | 40 @ 7.9MHz |
| Frequency - Self Resonant | 640kHz | 49MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 250 kHz | 7.9 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) |
| Height - Seated (Max) | - | - |
