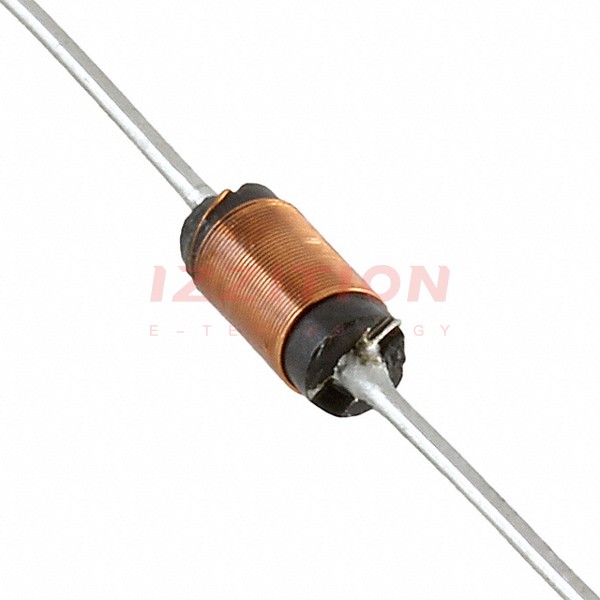

| Part Number | 70F566AI-RC | 70F563AI-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron |
| Inductance | 5.6 µH | 5.6 mH |
| Tolerance | ±10% | ±5% |
| Current Rating (Amps) | 637 mA | 46 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 492mOhm Max | 69.6Ohm Max |
| Q @ Freq | 41 @ 7.9MHz | 53 @ 250kHz |
| Frequency - Self Resonant | 49MHz | 680kHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 250 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | 0.300" Dia x 0.380" L (7.62mm x 9.65mm) |
| Height - Seated (Max) | - | - |
