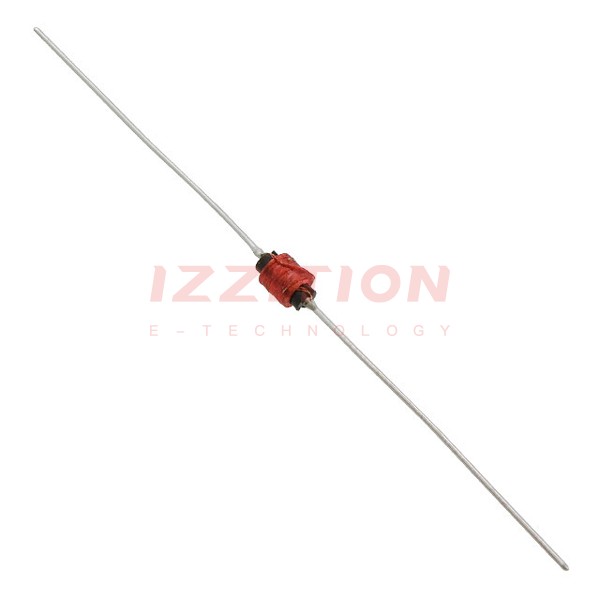

| Part Number | 70F504AI-RC | 70F104AI-RC | 70F204AI-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron |
| Inductance | 500 µH | 100 µH | 200 µH |
| Tolerance | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 91 mA | 139 mA | 120 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 18Ohm Max | 7.68Ohm Max | 10.3Ohm Max |
| Q @ Freq | 49 @ 790kHz | 25 @ 2.5MHz | 47 @ 790kHz |
| Frequency - Self Resonant | 1.8MHz | 3.6MHz | 2.7MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 790 kHz | 2.5 MHz | 790 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) |
| Height - Seated (Max) | - | - | - |
