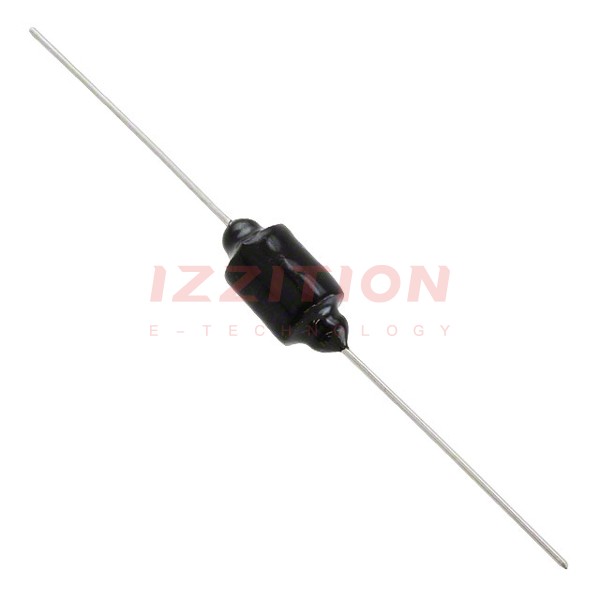

| Part Number | 70F502AF-RC | 70F501AF-RC |
|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Product Status | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 50 mH | 500 mH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 37 mA | 30 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 175Ohm Max | 736Ohm Max |
| Q @ Freq | 57 @ 79kHz | 53 @ 25kHz |
| Frequency - Self Resonant | 196kHz | 52kHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 79 kHz | 25 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.400" Dia x 0.630" L (10.16mm x 16.00mm) | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) |
| Height - Seated (Max) | - | - |
