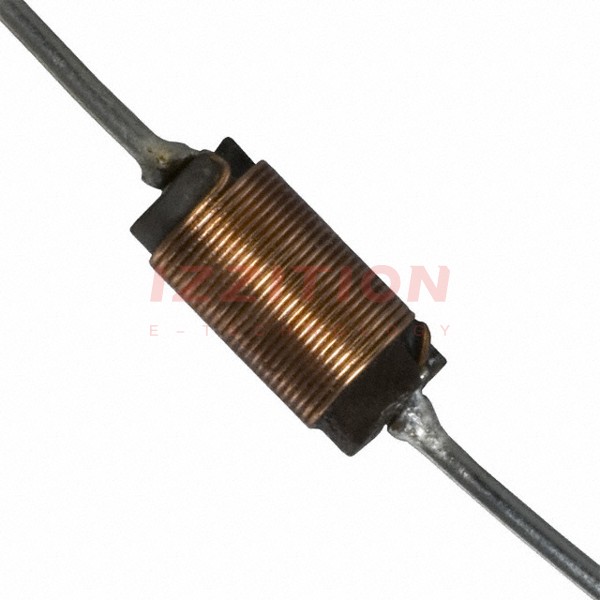

| Part Number | 70F336AI-RC | 70F333AI-RC | 70F334AI-RC | 70F335AI-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron | Iron |
| Inductance | 3.3 µH | 3.3 mH | 330 µH | 33 µH |
| Tolerance | ±10% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 912 mA | 53 mA | 103 mA | 208 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 240mOhm Max | 51.6Ohm Max | 13.9Ohm Max | 2.76Ohm Max |
| Q @ Freq | 40 @ 7.9MHz | 52 @ 250kHz | 41 @ 790kHz | 50 @ 2.5MHz |
| Frequency - Self Resonant | 66MHz | 800kHz | 2MHz | 10MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 250 kHz | 790 kHz | 2.5 MHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - |
