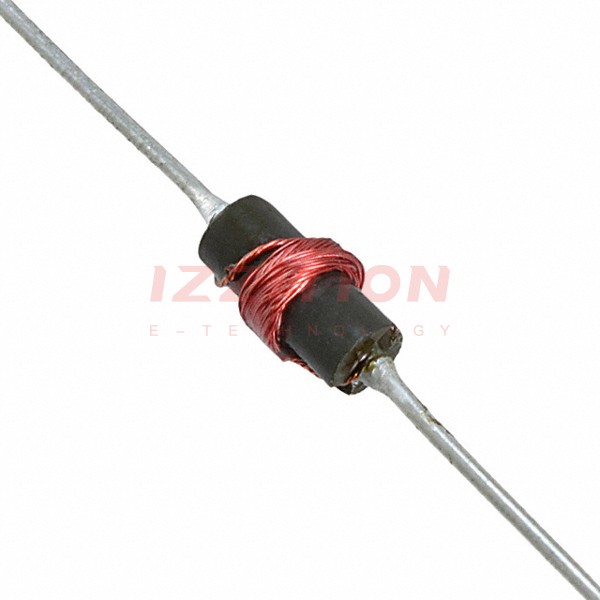

| Part Number | 70F275AI-RC | 70F475AI-RC | 70F276AI-RC | 70F225AI-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron | Iron |
| Inductance | 27 µH | 47 µH | 2.7 µH | 22 µH |
| Tolerance | ±5% | ±5% | ±10% | ±5% |
| Current Rating (Amps) | 213 mA | 188 mA | 1.091 A | 229 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.64Ohm Max | 3.36Ohm Max | 168mOhm Max | 2.28Ohm Max |
| Q @ Freq | 49 @ 2.5MHz | 44 @ 2.5MHz | 34 @ 7.9MHz | 51 @ 2.5MHz |
| Frequency - Self Resonant | 12MHz | 9.1MHz | 74MHz | 13MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.5 MHz | 2.5 MHz | 7.9 MHz | 2.5 MHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - |
