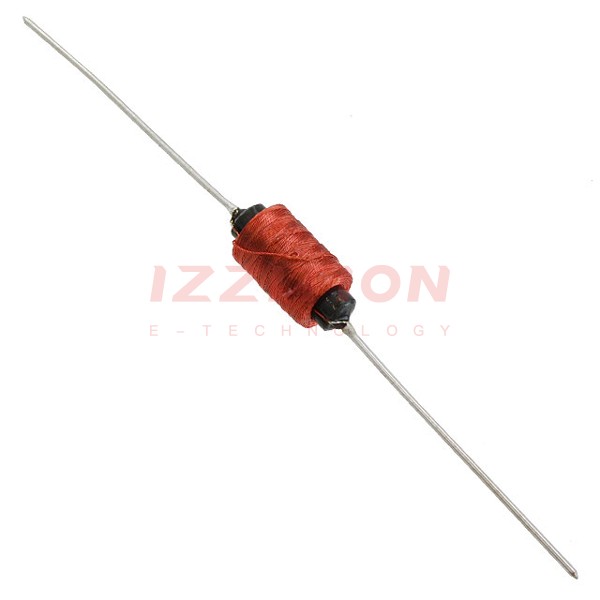

| Part Number | 70F272AF-RC | 70F472AF-RC | 70F252AF-RC |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 27 mH | 47 mH | 25 mH |
| Tolerance | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 45 mA | 38 mA | 46 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 120Ohm Max | 168Ohm Max | 115Ohm Max |
| Q @ Freq | 61 @ 79kHz | 57 @ 79kHz | 59 @ 79kHz |
| Frequency - Self Resonant | 244kHz | 206kHz | 250kHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 79 kHz | 79 kHz | 79 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.350" Dia x 0.630" L (8.89mm x 16.00mm) | 0.380" Dia x 0.630" L (9.65mm x 16.00mm) | 0.340" Dia x 0.630" L (8.64mm x 16.00mm) |
| Height - Seated (Max) | - | - | - |
