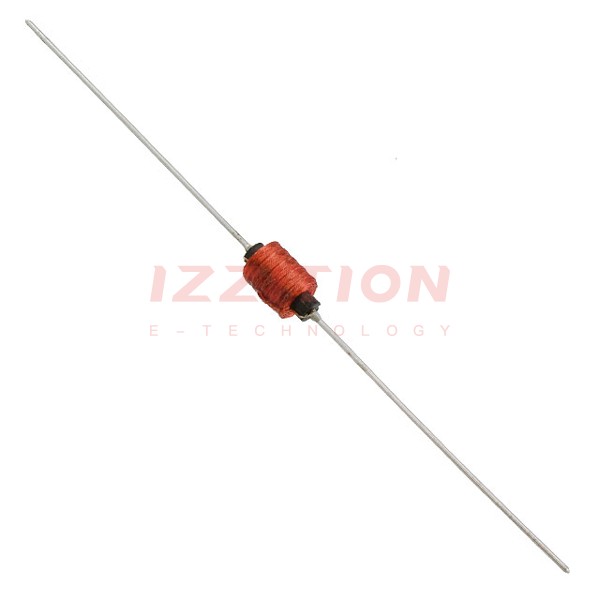

| Part Number | 70F253AI-RC | 70F753AI-RC | 70F153AI-RC | 70F223AI-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron | Iron |
| Inductance | 2.5 mH | 7.5 mH | 1.5 mH | 2.2 mH |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 57 mA | 41 mA | 63 mA | 57 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 45.6Ohm Max | 85.2Ohm Max | 37.2Ohm Max | 45.6Ohm Max |
| Q @ Freq | 48 @ 250kHz | 49 @ 250kHz | 40 @ 250kHz | 40 @ 250kHz |
| Frequency - Self Resonant | 960kHz | 600kHz | 1.1MHz | 960kHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 250 kHz | 250 kHz | 250 kHz | 250 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) | 0.220" Dia x 0.250" L (5.59mm x 6.35mm) | 0.240" Dia x 0.250" L (6.10mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - |
