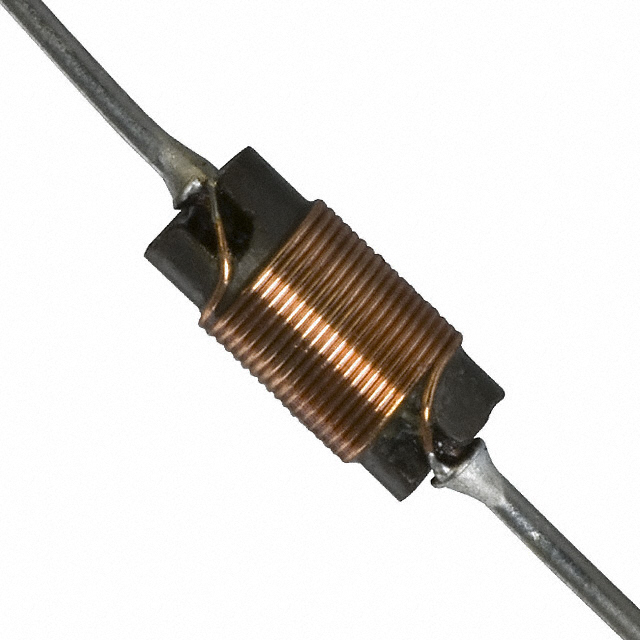

| Part Number | 70F226AI | 70F223AI | 70F225AI |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron |
| Inductance | 2.2 µH | 2.2 mH | 22 µH |
| Tolerance | ±10% | ±5% | ±5% |
| Current Rating (Amps) | 1.132 A | 57 mA | 229 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 156mOhm Max | 45.6Ohm Max | 2.28Ohm Max |
| Q @ Freq | 43 @ 7.9MHz | 40 @ 250kHz | 51 @ 2.5MHz |
| Frequency - Self Resonant | 87MHz | 960kHz | 13MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 7.9 MHz | 250 kHz | 2.5 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.240" Dia x 0.250" L (6.10mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) |
| Height - Seated (Max) | - | - | - |
