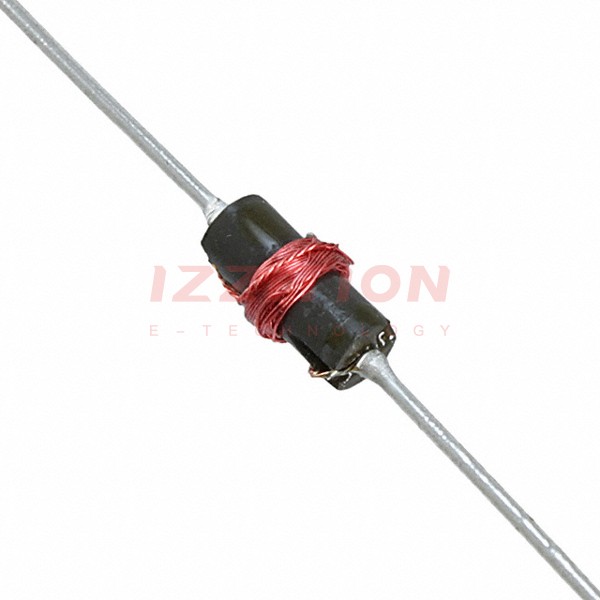

| Part Number | 70F155AI-RC | 70F105AI-RC | 70F152AI-RC | 70F153AI-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron | Iron |
| Inductance | 15 µH | 10 µH | 15 mH | 1.5 mH |
| Tolerance | ±10% | ±10% | ±5% | ±5% |
| Current Rating (Amps) | 250 mA | 277 mA | 47 mA | 63 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.92Ohm Max | 1.56Ohm Max | 113Ohm Max | 37.2Ohm Max |
| Q @ Freq | 52 @ 2.5MHz | 36 @ 7.9MHz | 50 @ 79kHz | 40 @ 250kHz |
| Frequency - Self Resonant | 16MHz | 19MHz | 320kHz | 1.1MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.5 MHz | 7.9 MHz | 79 kHz | 250 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | 0.220" Dia x 0.250" L (5.59mm x 6.35mm) |
| Height - Seated (Max) | - | - | - | - |
