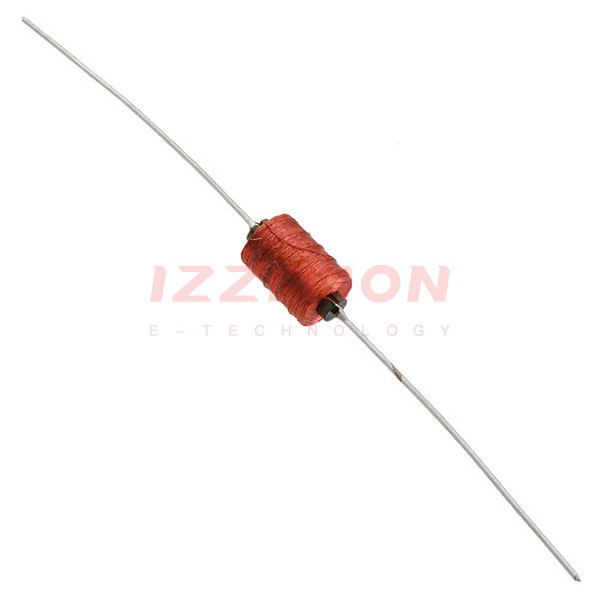

| Part Number | 70F152AI-RC | 70F155AI-RC | 70F153AI-RC | 70F102AI-RC | 70F122AI-RC |
|---|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron | Iron | Iron |
| Inductance | 15 mH | 15 µH | 1.5 mH | 10 mH | 12 mH |
| Tolerance | ±5% | ±10% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 47 mA | 250 mA | 63 mA | 38 mA | 50 mA |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 113Ohm Max | 1.92Ohm Max | 37.2Ohm Max | 101Ohm Max | 100Ohm Max |
| Q @ Freq | 50 @ 79kHz | 52 @ 2.5MHz | 40 @ 250kHz | 41 @ 250kHz | 46 @ 79kHz |
| Frequency - Self Resonant | 320kHz | 16MHz | 1.1MHz | 520kHz | 360kHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 79 kHz | 2.5 MHz | 250 kHz | 250 kHz | 79 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.220" Dia x 0.250" L (5.59mm x 6.35mm) | 0.330" Dia x 0.380" L (8.38mm x 9.65mm) | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) |
| Height - Seated (Max) | - | - | - | - | - |
