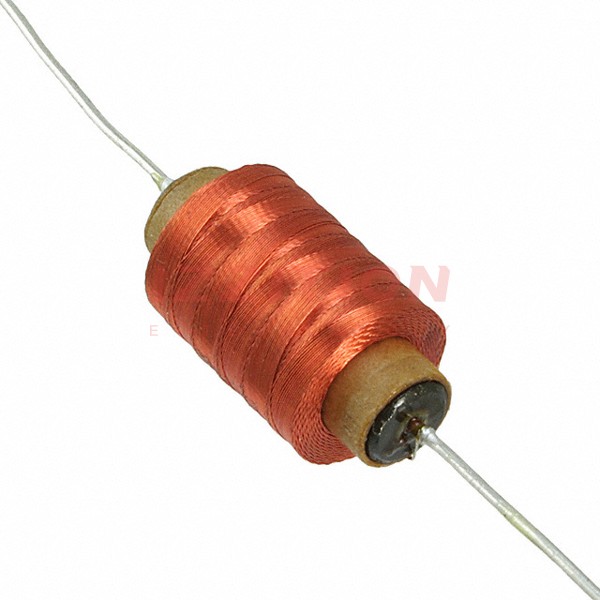

| Part Number | 70F151AF-RC | 70F251AF-RC | 70F101AF-RC | 70F121AF-RC |
|---|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 150 mH | 250 mH | 100 mH | 120 mH |
| Tolerance | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 44 mA | 37 mA | 29 mA | 48 mA |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 328Ohm Max | 468Ohm Max | 278Ohm Max | 288Ohm Max |
| Q @ Freq | 49 @ 25kHz | 52 @ 25kHz | 48 @ 79kHz | 46 @ 25kHz |
| Frequency - Self Resonant | 77kHz | 65kHz | 157kHz | 84kHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 25 kHz | 25 kHz | 79 kHz | 25 kHz |
| Features | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.500" Dia x 0.880" L (12.70mm x 22.35mm) | 0.550" Dia x 0.880" L (13.97mm x 22.35mm) | 0.440" Dia x 0.630" L (11.18mm x 16.00mm) | 0.480" Dia x 0.880" L (12.20mm x 22.35mm) |
| Height - Seated (Max) | - | - | - | - |
