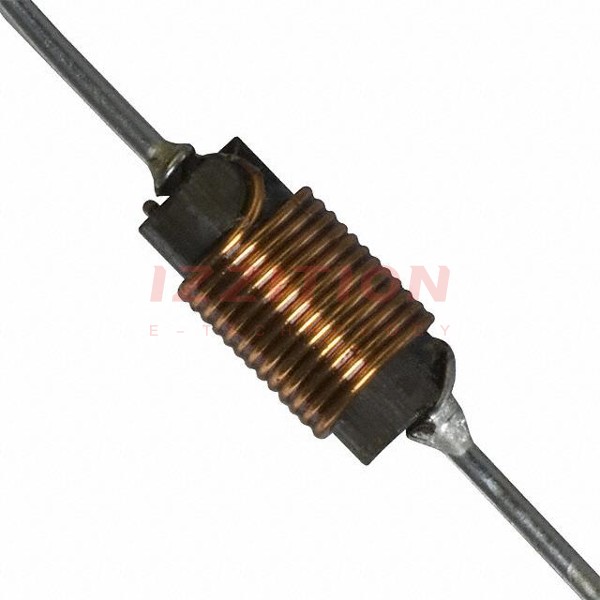

| Part Number | 70F106AI | 70F104AI | 70F105AI |
|---|---|---|---|
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron | Iron |
| Inductance | 1 µH | 100 µH | 10 µH |
| Tolerance | ±20% | ±5% | ±10% |
| Current Rating (Amps) | 2.041 A | 139 mA | 277 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 48mOhm Max | 7.68Ohm Max | 1.56Ohm Max |
| Q @ Freq | 41 @ 25MHz | 25 @ 2.5MHz | 36 @ 7.9MHz |
| Frequency - Self Resonant | 118MHz | 3.6MHz | 19MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 25 MHz | 2.5 MHz | 7.9 MHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) |
| Height - Seated (Max) | - | - | - |
